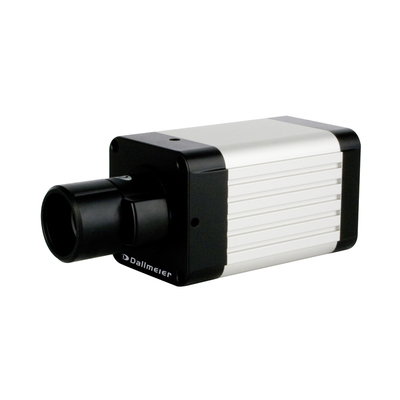

Dallmeier DF4620HD-DN 1.3-Megapixel Day/night Hybrid WDR HD CCTV Camera

Technical Specification

Features:
  • Make: Dallmeier
  • Model code: DF4620HD-DN
  • Chip Inch Size ": 1/3
  • Color Type: Color / Monochrome
  • Resolution TVL: 1.3 MP
Read more
Additional info:

Dallmeier DF4620HD-DN is a 1.3-megapixel day/night hybrid WDR HD CCTV camera. The camera provides real-time HD video using the H.264 codec and supports resolutions up to 1.3-megapixel. In addition to HD video over IP, the hybrid camera provides for a simultaneous analog SD (PAL/NTSC) video output via BNC (CVBS). The built-in Remote Back Focus Control technology allows for a precise and easy remote focusing over the network.

Read more
Make Dallmeier
Manufacturer Dallmeier electronic USA, Inc.
Model code DF4620HD-DN
Chip Inch Size " 1/3
Color Type Color / Monochrome
Resolution TVL 1.3 MP
Digital (DSP) Yes
HD Yes
Auto Iris Yes
Sensitivity lux 0.06
Lens Mount CS
Electrical Specifications Voltage: 12 V DC
Power Consumption: 4.5 W
Motion Activated Yes
Mount Type Wall
Wide Dynamic Range Yes
Auto Gain Control Yes
White Balance Yes
Electronic Shutter range 1/4(5) ~ 1/10000 s
S/ N (Signal/ Noise) Ratio dB 43.9
Signal Mode NTSC, PAL
Video Output BNC (CVBS, 1.0 Vp-p, 75ohm)
Physical Specifications Dimension mm: 71 x 66 x 125
Weight g: 300
Environmental Specifications Operating Temperature oC: -20 ~ +50 C (-4 ~ 122 F)
Operating Humidity %: 0 ~ 90
Additional info Dallmeier DF4620HD-DN is a 1.3-megapixel day/night hybrid WDR HD CCTV camera. The camera provides real-time HD video using the H.264 codec and supports resolutions up to 1.3-megapixel. In addition to HD video over IP, the hybrid camera provides for a simultaneous analog SD (PAL/NTSC) video output via BNC (CVBS). The built-in Remote Back Focus Control technology allows for a precise and easy remote focusing over the network.
