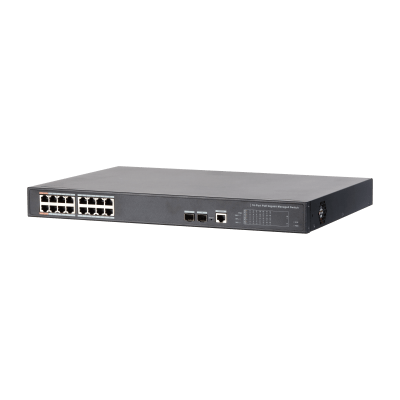

Dahua Technology PFS4218-16GT-190 16-Port PoE Gigabit Managed Switch

Technical Specification

Features:
  • Make: Dahua Technology
  • Model code: PFS4218-16GT-190
  • Switcher Type: IP
  • POE: Yes
  • Video inputs / ports: 16
Read more
Additional info:

Layer 2 network management PoE switch Support IEEE802.3af, IEEE802.3at standard Support Hi-PoE 60W Network Redundancy: STP/RSTP/MSTP Support IPv4/IPv6, and DHCP Network management based on SNMP Configuration: Web, Telnet, CLI Command QoS (IEEE802.1p/1Q), CoS/ToS to Increase Determinism Enhanced Network Security with IEEE802.1X, SNMP v1/v2c/v3, HTTPS, and SSH/SSL Large data cache(4M), real-time transmission MAC auto study and aging, MAC address list capacity is 8K EMC high protection design

Read more
Make Dahua Technology
Manufacturer Dahua Technology USA Inc.
Model code PFS4218-16GT-190
Switcher Type IP
POE Yes
Video inputs / ports 16
Physical Specifications Dimensions mm: 440 x 300 x 44
Electrical Specifications Voltage: 100 ~ 240 V AC
Power Consumption: Each power ≤30W, Total≤190W
Environmental Specifications Operating Temperature oC: -10 ~ +55 C (14 ~ 131 F)
Operating Humidity %: 5 ~ 95
Additional info
  • Layer 2 network management PoE switch
  • Support IEEE802.3af, IEEE802.3at standard
  • Support Hi-PoE 60W
  • Network Redundancy: STP/RSTP/MSTP
  • Support IPv4/IPv6, and DHCP
  • Network management based on SNMP
  • Configuration: Web, Telnet, CLI Command
  • QoS (IEEE802.1p/1Q), CoS/ToS to Increase Determinism
  • Enhanced Network Security with IEEE802.1X, SNMP v1/v2c/v3, HTTPS, and SSH/SSL
  • Large data cache(4M), real-time transmission
  • MAC auto study and aging, MAC address list capacity is 8K
  • EMC high protection design
