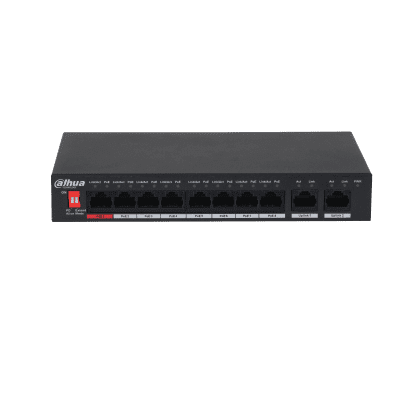

Dahua Technology PFS3010-8ET-96 10-Port Unmanaged Desktop Switch with 8-Port PoE

Technical Specification

Features:
  • Make: Dahua Technology
  • Model code: PFS3010-8ET-96
  • Switcher Type: IP
  • POE: Yes
  • Video inputs / ports: 10
Read more
Additional info:

Intelligent PoE Red port supports 90W IEEE802.3bt 8-pin assignment PoE power supply 250 m long distance PoE transmission PoE watchdog

Read more
Make Dahua Technology
Manufacturer Dahua Technology USA Inc.
Model code PFS3010-8ET-96
Switcher Type IP
POE Yes
Video inputs / ports 10
Physical Specifications Dimensions mm: 190 x 100 x 30
Weight g: 500
Electrical Specifications Voltage: 53 V DC
Power Consumption: Full load: 96W, Idling: 3.0W
Environmental Specifications Operating Temperature oC: -10 ~ +55 C (14 ~ 131 F)
Operating Humidity %: 5 ~ 95
Additional info
  • Intelligent PoE
  • Red port supports 90W IEEE802.3bt
  • 8-pin assignment PoE power supply
  • 250 m long distance PoE transmission
  • PoE watchdog
