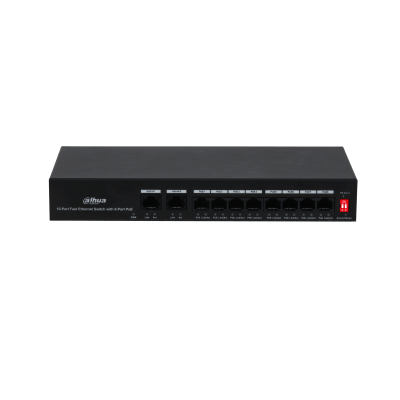

Dahua Technology PFS3010-8ET-65 10-Port Fast Ethernet Switch With 8-Port PoE

Technical Specification

Features:

Make: Dahua Technology
Model code: PFS3010-8ET-65
Switcher Type: IP
POE: Yes
Video inputs / ports: 10

Additional info:

Support eight 10/100M PoE power supply ports, and two 10/100M uplink ports Support 802.3af and 802.3at standards Operating Temperature: -10°C to +55°C Support 250 m long distance PoE tansmission Support PoE watchdog

Contact manufacturer Contact manufacturer Datasheet Datasheet

Make	Dahua Technology
Manufacturer	Dahua Technology USA Inc.
Model code	PFS3010-8ET-65
Switcher Type	IP
POE	Yes
Video inputs / ports	10
Physical Specifications	Dimensions mm: 243 x 123 x 35 Weight g: 760
Electrical Specifications	Voltage: 100 ~ 240 V AC Power Consumption: Idling: 1.0W / Full load: 65W
Environmental Specifications	Operating Temperature ^oC: -10 ~ +55 C (14 ~ 131 F) Operating Humidity %: 10 ~ 90
Additional info	Support eight 10/100M PoE power supply ports, and two 10/100M uplink ports Support 802.3af and 802.3at standards Operating Temperature: -10°C to +55°C Support 250 m long distance PoE tansmission Support PoE watchdog
