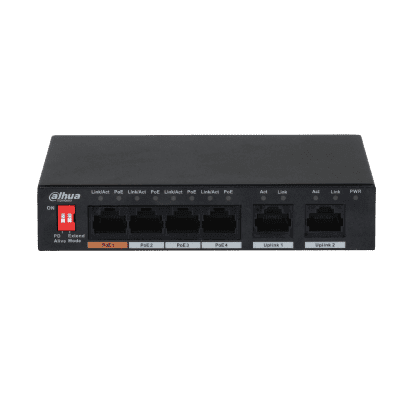

Dahua Technology PFS3006-4ET-60 6-Port 10/100Mbps Unmanaged Desktop Switch With 4 PoE Ports

Technical Specification

Features:
  • Make: Dahua Technology
  • Model code: PFS3006-4ET-60
  • Switcher Type: IP
  • POE: Yes
  • Video inputs / ports: 6
Read more
Additional info:

Layer two commercial switch Supports IEEE802.3, IEEE802.3u, IEEE802.3ab and IEEE802.3x standards MDI/MDIX self-adaptation RJ-45 port supports 10/100 Mbps self-adaptation, and confirms to 802.3at, and 802.3af power supply standards Port 1 supports Hi-PoE 60W power supply 250 m PoE power supply Wall mounting and mechanical anti-thef 53V DC power supply Supports PoE watchdog

Read more
Make Dahua Technology
Manufacturer Dahua Technology USA Inc.
Model code PFS3006-4ET-60
Switcher Type IP
POE Yes
Video inputs / ports 6
Physical Specifications Dimensions mm: 130 x 85 x 26
Weight g: 300
Electrical Specifications Voltage: 53 V DC
Power Consumption: Full load: 60W, Idling: 1.5W
Environmental Specifications Operating Temperature oC: -10 ~ +55 C (14 ~ 131 F)
Operating Humidity %: 5 ~ 95
Additional info
  • Layer two commercial switch
  • Supports IEEE802.3, IEEE802.3u, IEEE802.3ab and IEEE802.3x standards
  • MDI/MDIX self-adaptation
  • RJ-45 port supports 10/100 Mbps self-adaptation, and confirms to 802.3at, and 802.3af power supply standards
  • Port 1 supports Hi-PoE 60W power supply
  • 250 m PoE power supply
  • Wall mounting and mechanical anti-thef
  • 53V DC power supply
  • Supports PoE watchdog
