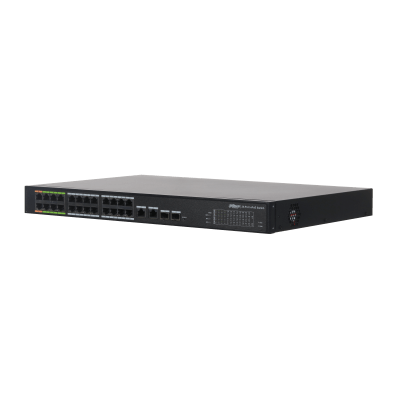

Dahua Technology LR2226-24ET-360 24-Port PoE Switch with 8-Port ePoE

Technical Specification

Features:
  • Make: Dahua Technology
  • Model code: LR2226-24ET-360
  • Switcher Type: IP
  • POE: Yes
  • Video inputs / ports: 24
Read more
Additional info:

Supports long distance PoE transmission up to 800m with ePoE technology Layer-two web managed ePoE switch Port 1-8 support three self-adaptive transmission modes which are IEEE, E100 and E10 Port 1-8 support both twisted-pair transmission and coaxial cable transmission Support web management: port management, 802.1Q VLAN, STP/RSTP, LACP, 802.1X, QoS Support PoE management, Green PoE, Legacy Support Conform IEEE802.3, IEEE802.3u, IEEE802.3ab/z and IEEE802.3X standards

Read more
Make Dahua Technology
Manufacturer Dahua Technology USA Inc.
Model code LR2226-24ET-360
Switcher Type IP
POE Yes
Video inputs / ports 24
Physical Specifications Dimensions mm: 440 x 300 x 44
Weight g: 3120
Electrical Specifications Voltage: 100 ~ 240 V AC
Power Consumption: Each power≤30W, Total≤360W
Environmental Specifications Operating Temperature oC: -10 ~ +55 C (14 ~ 131 F)
Operating Humidity %: 10 ~ 90
Additional info
  • Supports long distance PoE transmission up to 800m with ePoE technology
  • Layer-two web managed ePoE switch
  • Port 1-8 support three self-adaptive transmission modes which are IEEE, E100 and E10
  • Port 1-8 support both twisted-pair transmission and coaxial cable transmission
  • Support web management: port management, 802.1Q VLAN, STP/RSTP, LACP, 802.1X, QoS
  • Support PoE management, Green PoE, Legacy Support
  • Conform IEEE802.3, IEEE802.3u, IEEE802.3ab/z and IEEE802.3X standards
