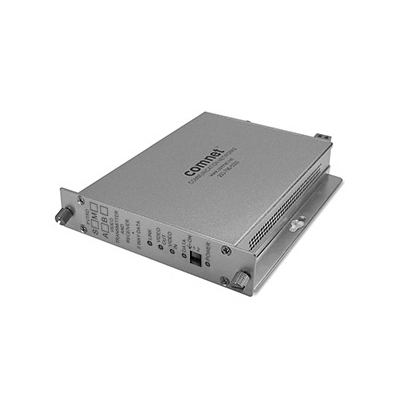

ComNet FVTRDM1A Video Transmitter/data Transceiver

Technical Specification

Features:

Make: ComNet
Model code: FVTRDM1A
Data Transceiver: Yes
Transmitter Type: Yes
No of Fibres: 1

Additional info:

ComNet FVTRDM1A video transmitter/data transceiver supports simultaneous transmission of short-haul quality 10-bit bi-directional digital video or video sync plus bi-directional data over one multimode optical fiber. The module is universally compatible with major CCTV camera manufacturers and supports RS232, RS422 and 2 or 4-wire RS485 data interfaces, and most major data protocols.

Contact manufacturer Contact manufacturer Datasheet Datasheet

Make	ComNet
Manufacturer	ComNet Europe Ltd.
Category	Video Surveillance>Fibre optics, telemetry receivers, transmitters, transceivers
Model code	FVTRDM1A
Data Transceiver	Yes
Transmitter Type	Yes
No of Fibres	1
No of Video Inputs	1
Bandwidth MHz	10
Physical Specifications	Dimensions mm: 155 x 135 x 28 Weight g: 900
Environmental Specifications	Operating Temperature ^oC: -40 ~ +75 C (-40 ~ +167 F) Operating Humidity %: 0 ~ 95
Electrical Specifications	Power Consumption: 2 W Voltage: 8 ~ 15 V DC
Additional info	ComNet FVTRDM1A video transmitter/data transceiver supports simultaneous transmission of short-haul quality 10-bit bi-directional digital video or video sync plus bi-directional data over one multimode optical fiber. The module is universally compatible with major CCTV camera manufacturers and supports RS232, RS422 and 2 or 4-wire RS485 data interfaces, and most major data protocols.
