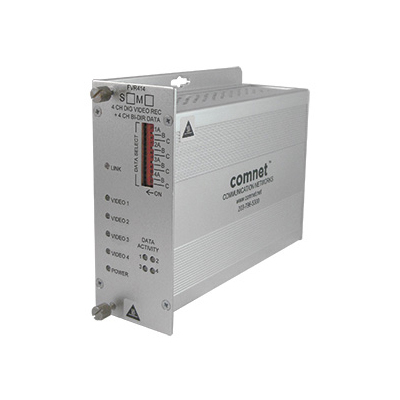

ComNet FVT414M1 Video Transmitter/data Transceiver

Technical Specification

Features:

Make: ComNet
Model code: FVT414M1
Data Transceiver: Yes
Transmitter Type: Yes
No of Fibres: 1

Additional info:

ComNet FVT414M1 video transmitter/data transceiver utilizes digital encoding and decoding for high-quality video transmission. This environmentally hardened unit provides transmission of four independent video channels and four bi-directional data channels over one optical fiber and is ideal for use in unconditioned roadside or out-of-plant installations. The unit is are completely transparent to and universally compatible with any NTSC, PAL, or SECAM CCTV camera systems, data channels can be set independently for RS232, RS422 and 2 or 4-wire RS485 with tri-state support.

Contact manufacturer Contact manufacturer

Datasheet Datasheet

Make	ComNet
Manufacturer	ComNet Europe Ltd.
Category	Video Surveillance>Fibre optics, telemetry receivers, transmitters, transceivers
Model code	FVT414M1
Data Transceiver	Yes
Transmitter Type	Yes
No of Fibres	1
No of Video Inputs	4
Bandwidth MHz	6.5
Physical Specifications	Dimensions mm: 155 x 135 x 56 Weight g: 900
Environmental Specifications	Operating Temperature ^oC: -40 ~ +75 C (-40 ~ +167 F) Operating Humidity %: 0 ~ 95
Electrical Specifications	Voltage: 8 ~ 15 V DC Power Consumption: 4 W
Additional info	ComNet FVT414M1 video transmitter/data transceiver utilizes digital encoding and decoding for high-quality video transmission. This environmentally hardened unit provides transmission of four independent video channels and four bi-directional data channels over one optical fiber and is ideal for use in unconditioned roadside or out-of-plant installations. The unit is are completely transparent to and universally compatible with any NTSC, PAL, or SECAM CCTV camera systems, data channels can be set independently for RS232, RS422 and 2 or 4-wire RS485 with tri-state support.
