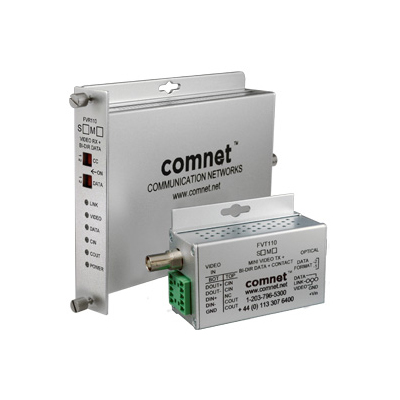

ComNet FVT110M1/M Mini Video Transmitter/data Transceiver
Technical Specification
Features:
- Make: ComNet
- Model code: FVT110M1/M
- Data Transceiver: Yes
- Transmitter Type: Yes
- No of Fibres: 1
Additional info:
ComNet FVT110M1/M mini video transmitter/data transceiver supports the simultaneous transmission of short haul quality 10-bit EIA RS-250C digitally encoded video and bi-directional data over one multimode mode optical fiber. The module is universally compatible with major CCTV camera manufacturers and supports RS232, RS422 and 2 or 4-wire RS485 data interfaces and most data protocols.
Read more| Make | ComNet |
|---|---|
| Manufacturer | ComNet Europe Ltd. |
| Category | Video Surveillance>Fibre optics, telemetry receivers, transmitters, transceivers |
| Model code | FVT110M1/M |
| Data Transceiver | Yes |
| Transmitter Type | Yes |
| No of Fibres | 1 |
| No of Video Inputs | 1 |
| Bandwidth MHz | 10 |
| Physical Specifications |
Dimensions mm: 84 x 64 x 27 Weight g: 900 |
| Environmental Specifications |
Operating Temperature oC: -40 ~ +75 C (-40 ~ +167 F) Operating Humidity %: 0 ~ 95 |
| Electrical Specifications |
Voltage: 8 ~ 15 V DC Power Consumption: 5.25 W |
| Additional info | ComNet FVT110M1/M mini video transmitter/data transceiver supports the simultaneous transmission of short haul quality 10-bit EIA RS-250C digitally encoded video and bi-directional data over one multimode mode optical fiber. The module is universally compatible with major CCTV camera manufacturers and supports RS232, RS422 and 2 or 4-wire RS485 data interfaces and most data protocols. |
