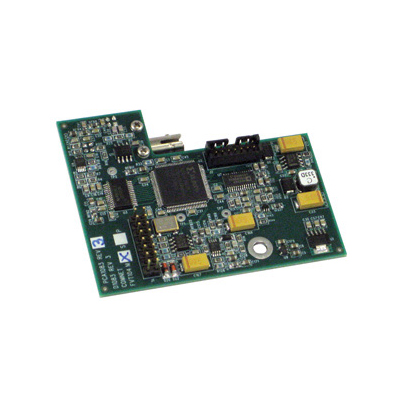

ComNet FVT1031M1-P Video Transmitter/data Transceiver
Technical Specification
Features:
- Make: ComNet
- Model code: FVT1031M1-P
- Data Transceiver: Yes
- Transmitter Type: Yes
- No of Fibres: 1
Additional info:
ComNet FVT1031M1-P video transmitter/data transceiver supports simultaneous broadcast-quality video transmission of 10-bit digitally encoded video and return RS422 or Extended Distance Coaxitron data over one multimode optical fiber.
Read more| Make | ComNet |
|---|---|
| Manufacturer | ComNet Europe Ltd. |
| Category | Video Surveillance>Fibre optics, telemetry receivers, transmitters, transceivers |
| Model code | FVT1031M1-P |
| Data Transceiver | Yes |
| Transmitter Type | Yes |
| No of Fibres | 1 |
| No of Video Inputs | 1 |
| Bandwidth MHz | 6.5 |
| Physical Specifications |
Dimensions mm: 102 x 64 Weight g: 900 |
| Environmental Specifications |
Operating Temperature oC: -40 ~ +75 C (-40 ~ +167 F) Operating Humidity %: 0 ~ 95 |
| Electrical Specifications |
Voltage: 8 ~ 15 V DC Power Consumption: 2 W |
| Additional info | ComNet FVT1031M1-P video transmitter/data transceiver supports simultaneous broadcast-quality video transmission of 10-bit digitally encoded video and return RS422 or Extended Distance Coaxitron data over one multimode optical fiber. |
