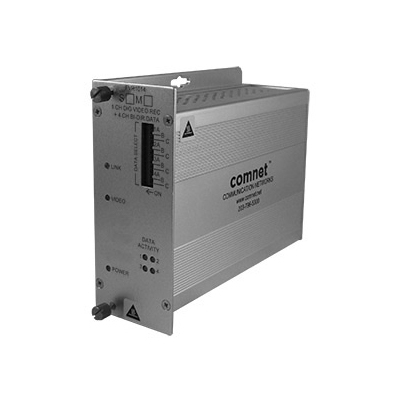

ComNet FVT1014M1 Video Transmitter/data Transceiver
Technical Specification
- Make: ComNet
- Model code: FVT1014M1
- Data Transceiver: Yes
- Transmitter Type: Yes
- No of Fibres: 1
ComNet FVT1014M1 video transmitter/data transceiver utilizes 10-bit digital encoding and decoding for high-quality video transmission that meets the requirements of EIA RS-250C for short-haul video transmission. The environmentally hardened unit provides transmission of one independent video channel and four bi-directional data channels over one optical fiber and is ideal for use in unconditioned roadside or out-of-plant installations. This unit is completely transparent to and universally compatible with any NTSC, PAL, or SECAM CCTV camera systems, data channels can be set independently for RS232, RS422 and 2 or 4-wire RS485 with tri-state support.
Read more| Make | ComNet |
|---|---|
| Manufacturer | ComNet Europe Ltd. |
| Category | Video Surveillance>Fibre optics, telemetry receivers, transmitters, transceivers |
| Model code | FVT1014M1 |
| Data Transceiver | Yes |
| Transmitter Type | Yes |
| No of Fibres | 1 |
| No of Video Inputs | 1 |
| Bandwidth MHz | 6.5 |
| Physical Specifications |
Dimensions mm: 155 x 135 x 56 Weight g: 900 |
| Environmental Specifications |
Operating Temperature oC: -40 ~ +75 C (-40 ~ +167 F) Operating Humidity %: 0 ~ 95 |
| Electrical Specifications |
Voltage: 8 ~ 15 V DC Power Consumption: 4 W |
| Additional info | ComNet FVT1014M1 video transmitter/data transceiver utilizes 10-bit digital encoding and decoding for high-quality video transmission that meets the requirements of EIA RS-250C for short-haul video transmission. The environmentally hardened unit provides transmission of one independent video channel and four bi-directional data channels over one optical fiber and is ideal for use in unconditioned roadside or out-of-plant installations. This unit is completely transparent to and universally compatible with any NTSC, PAL, or SECAM CCTV camera systems, data channels can be set independently for RS232, RS422 and 2 or 4-wire RS485 with tri-state support. |
