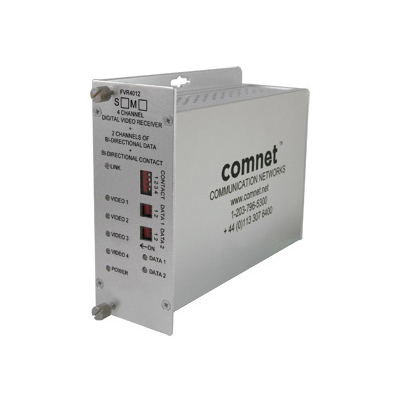

ComNet FVT/FVR4012(M,S)1 Transmitter/receiver
Technical Specification
- Make: ComNet
- Model code: FVT/FVR4012(M,S)1
- Data Transceiver: Yes
- Transmitter Type: Yes
- Receiver Type: Yes
ComNet FVT/FVR4012(M,S)1 transmitter/receiver transmits four channels of video utilizing state of the art 10-bit digital encoding and decoding for very high quality video transmission, along with two channels of bi-directional data and one bi-directional contact closure over one single mode or multimode optical fiber. The equipment is environmentally hardened and suitable for use in unconditioned roadside or out-of plant installations. It is compatible with NTSC, PAL and SECAM video transmission protocols and supports bi-directional rs232, 422 and 485 (2 & 4 Wire) data.
Read more| Make | ComNet |
|---|---|
| Manufacturer | ComNet Europe Ltd. |
| Category | Video Surveillance>Fibre optics, telemetry receivers, transmitters, transceivers |
| Model code | FVT/FVR4012(M,S)1 |
| Data Transceiver | Yes |
| Transmitter Type | Yes |
| Receiver Type | Yes |
| No of Fibres | 1 |
| No of Video Inputs | 4 |
| Bandwidth MHz | 6.5 |
| Physical Specifications |
Dimensions mm: 155 x 135 x 83 Weight g: 900 |
| Environmental Specifications |
Operating Temperature oC: -40 ~ +75 C (-40 ~ +167 F) Operating Humidity %: 0 ~ 95 |
| Electrical Specifications |
Voltage: 8 ~ 15 V DC Power Consumption: 4 W |
| Additional info | ComNet FVT/FVR4012(M,S)1 transmitter/receiver transmits four channels of video utilizing state of the art 10-bit digital encoding and decoding for very high quality video transmission, along with two channels of bi-directional data and one bi-directional contact closure over one single mode or multimode optical fiber. The equipment is environmentally hardened and suitable for use in unconditioned roadside or out-of plant installations. It is compatible with NTSC, PAL and SECAM video transmission protocols and supports bi-directional rs232, 422 and 485 (2 & 4 Wire) data. |
