Climax Introduces TSP-3 Touchscreen Keypad

Product Profile

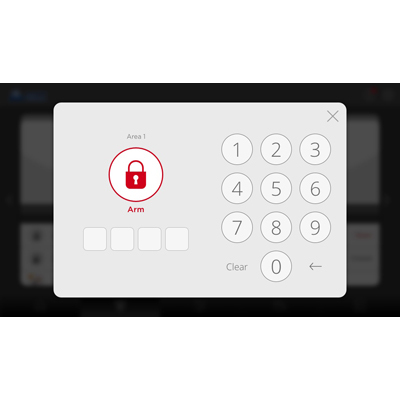

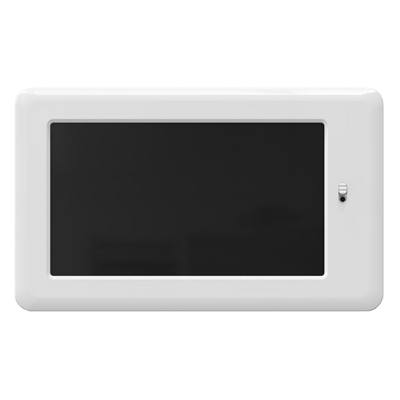

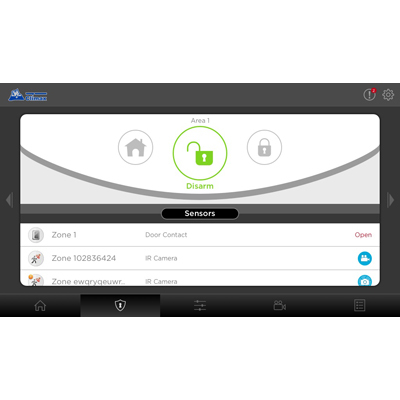

Featuring a 7” full-color, high-resolution touchscreen, TSP-3 provides quick and secure access to arm/disarm/home arm the system and an intuitive way to operate the security system. Connected to the control panel via Wi-Fi network, TSP-3 displays an overview of the system with its intuitive graphic user interface.

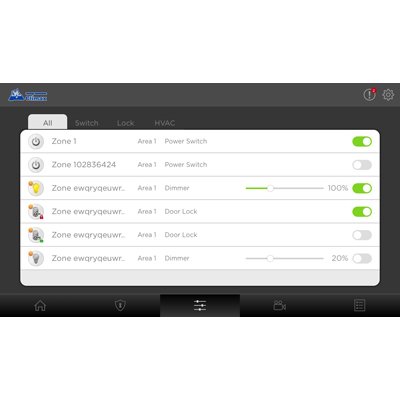

By gaining control over security and home automation sensors in the system, TSP-3 enhances convenience and comfort level of living. Built-in 2 megapixel front camera is able to take photos, providing with the basis for algorithm analysis to detect and prevent potential harms. With adjustable privacy shutter in front of the camera, TSP-3 offers another layer of peace of mind for users.

In addition, TSP-3 can be wall-mounted or placed on the table with its stand. With its flexibility of installation and the capabilities of security and home automation control, TSP-3 provides an effortless way for users to gain access control, as well as an easier, smarter way of living.

Features

  • 7” high resolution color graphic touchscreen to control devices in the system
  • User-friendly and intuitive interface
  • Built-in 2 megapixel camera
  • Adjustable privacy shutter
  • Built-in microphone and speaker
  • Home automation capabilities
  • Take photos for algorithm analysis to detect and prevent potential harms
  • Flexible installation options of wall mounting or desktop deployment
  • Compatibility with video doorphone for live answer (available soon)
  • Suitable for residential and commercial premises

Specifications

  • Display: 7” LCD
  • Wi-Fi: 802.11 b/g/n 2.4GHz
  • Power Source: 5V/1.4A, USB adapter
  • Backup Battery: 3.7V 2500mAh Lithium-ion polymer battery
  • Backup Battery Life: 4 hours*
  • Camera: 2 megapixel camera
  • Audio: Built-in microphone and speaker
  • Operating Temperature: -10°C to 45°C (14°F to 113°F)
  • Operating Humidity: Up to 85% non-condensing
  • Dimensions: 195 mm x 114 mm x 17 mm

*Note: Actual battery life may vary due to product settings, operating environment and usage.

Read more

Technical Specification

Make Climax Technology
Manufacturer Climax Technology Co., Ltd.
Model code TSP-3
Type of Kit/ System Video, Keypad & Audio
Mount Type Wall Mount
Fixed Camera Yes
Environmental Specifications Operating Temperature oC: -10 ~ +45 C (14 ~ 113 F)
Operating Humidity %: 85
Electrical Specifications Voltage: 5V/1.5A, USB adapter
Physical Specifications Dimensions mm: 195 x 114 x 17
Additional info
  • 7” high resolution color graphic touchscreen to control devices in the system
  • User-friendly and intuitive interface
  • Built-in 2 megapixel camera with adjustable shutter
  • Suitable for residential and commercial premises
  • Security and home automation capabilities
  • Flexible installation options of wall mounting or desktop deployment
  • Built-in microphone and speaker
  • Compatibility with Climax’s video doorphone for live video verification (available soon)
  • OTA firmware update capability
