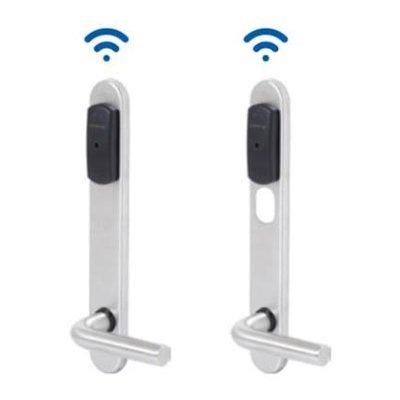

ASSA ABLOY WSDE - Wireless Scan Door Escutcheon (Spindle Kits Not Inc)

Technical Specification

Features:

Make: ASSA ABLOY
Model code: WSDE
Material: Stainless-steel
Door Material: Wood / Glass
Operating Temperature ^oC: -20 ~ +70 C (-4 ~ 158 F)

Additional info:

Door profiles - Scandinavian, suitable for wooden, narrow or glass doors Verticals - All industries, Special antibacterial surface for healthcare applications Traffic Volume - Medium to high Exterior usage - Yes (IP55), Up to 85% humidity without condensation, Temperature outside (-20°C and +70°C), inside (0°C and 50°C) Hardware compatibility and installation - High retrofit (compatible with most mortise locks), Drilling, no cabling Power Supply - Battery (up to 70.000 Cyclesmax. 3 years standby) System Management - Wireless

Contact manufacturer Contact manufacturer

Datasheet Datasheet

Make	ASSA ABLOY
Manufacturer	ASSA ABLOY
Category	Access Control>Electronic lock systems
Model code	WSDE
Material	Stainless-steel
Door Material	Wood / Glass
Environmental Specifications	Operating Temperature ^oC: -20 ~ +70 C (-4 ~ 158 F) Operating Humidity %: 85 Protection: IP55
Additional info	Door profiles - Scandinavian, suitable for wooden, narrow or glass doors Verticals - All industries, Special antibacterial surface for healthcare applications Traffic Volume - Medium to high Exterior usage - Yes (IP55), Up to 85% humidity without condensation, Temperature outside (-20°C and +70°C), inside (0°C and 50°C) Hardware compatibility and installation - High retrofit (compatible with most mortise locks), Drilling, no cabling Power Supply - Battery (up to 70.000 Cyclesmax. 3 years standby) System Management - Wireless
