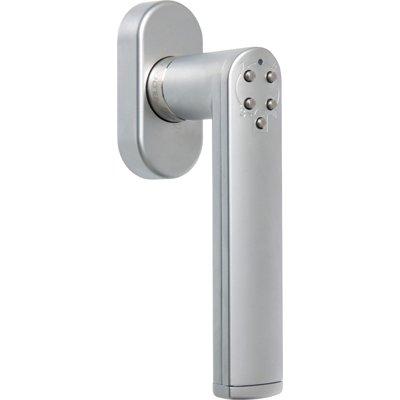

ASSA ABLOY 492-W0----1---- Code Handle® Window

Technical Specification

Features:

Make: ASSA ABLOY
Model code: 492-W0----1----
Voltage: 2 x AAA lithium
Dimensions mm: 70 x 32.5 x 150

Additional info:

Code Handle® is unlocked using a six-figure code using the number range between 1 and 4 Separate locking button Up to 5 different (six-digit) user codes Blocking function with repeated entry of an incorrect code A combined administrator code/user code to enter, change and delete user codes The beep can also be activated or deactivated with this code The code is not impaired in ist function due to power failure/battery replacement Operation with standard AAA alkali batteries Battery life around 2 years/15,000 locking cycles Supplied with M5 standard screws and security screws, as well as interchangeable spindle. Meets DIN standard, 43 mm centres distance

Contact manufacturer Contact manufacturer Datasheet Datasheet

Make	ASSA ABLOY
Manufacturer	ASSA ABLOY
Model code	492-W0----1----
Electrical Specifications	Voltage: 2 x AAA lithium
Physical Specifications	Dimensions mm: 70 x 32.5 x 150
Additional info	Code Handle® is unlocked using a six-figure code using the number range between 1 and 4 Separate locking button Up to 5 different (six-digit) user codes Blocking function with repeated entry of an incorrect code A combined administrator code/user code to enter, change and delete user codes The beep can also be activated or deactivated with this code The code is not impaired in ist function due to power failure/battery replacement Operation with standard AAA alkali batteries Battery life around 2 years/15,000 locking cycles Supplied with M5 standard screws and security screws, as well as interchangeable spindle. Meets DIN standard, 43 mm centres distance
