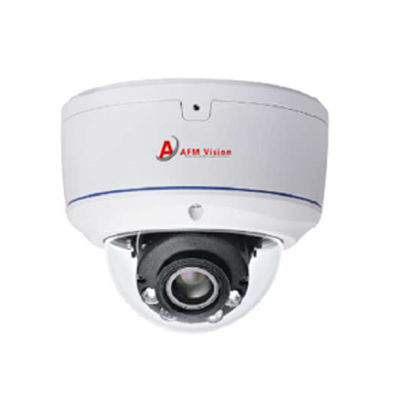

AFMVision AFM-WDM-3MP-D 3 Megapixel IR Dome Motorized Lens IP Camera

Technical Specification

Please note: this is a discontinued product.

Go to Replacement product

AFMVision AFM-WDM-3MP-D 3 Megapixel IR Dome Motorized Lens IP Camera

Features:

Make: AFMVision
Model code: AFM-WDM-3MP-D
Series: C-Series
Chip Inch Size: 1/3
Color Type: True Day / Night

Additional info:

1/2.5" 3.0 Megapixel Progressive Scan Aptina CMOS sensor Ti DaVinci Series DSP H.264 & MJPEG dual-stream encoding Dual encoding streams supported Built-in 1/1 alarm in/out Max IR Distance: 30m, Array IR LEDs

Contact manufacturer Contact manufacturer

Datasheet Datasheet

Make	AFMVision
Manufacturer	AFMVision UK Technologies Ltd.
Category	Video Surveillance>IP Dome cameras
Model code	AFM-WDM-3MP-D
Chip Inch Size	1/3
Color Type	True Day / Night
Resolution TVL	3 MP
Megapixel	Yes
Sensitivity lux	0.2
Digital (DSP)	Yes
Electrical Specifications	Voltage: 12 V DC, PoE Power Consumption: < 10 W
Focal length	2.8 ~ 12 mm
Compression	H.264, MJPEG
White Balance	Yes
S/ N (Signal/ Noise) Ratio dB	> 50
Video Output	BNCx1, 1Vp-p 75 ohm Composite - Optional
Network Properties	Network Protocols: HTTP, FTP, SMTP, DNS, DDNS, RTSP, RTP, TCP, UDP, DHCP Image Frame Rate: 20 fps Inclusive DVR/ Web Server: Built-in Web server, NVR, VSS
Physical Specifications	Dimensions mm: 249 x 74 Weight g: 900
Environmental Specifications	Operating Temp ^oC: -40 ~ +60 C (-40 ~ +140 F) Operating Humidity %: < 95 Protection: IP66, IK10
Additional info	1/2.5" 3.0 Megapixel Progressive Scan Aptina CMOS sensor Ti DaVinci Series DSP H.264 & MJPEG dual-stream encoding Dual encoding streams supported Built-in 1/1 alarm in/out Max IR Distance: 30m, Array IR LEDs
