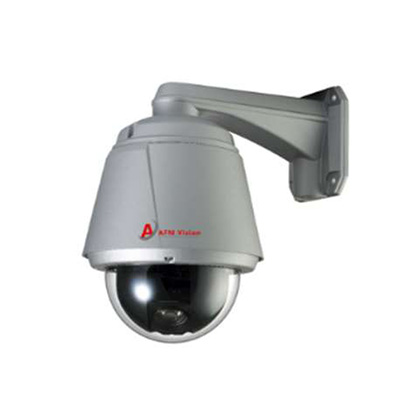

AFMVision AFM-VPD200PM2Ti Full HD X20 High Speed PTZ Camera

Please note: this is a discontinued product.

Go to Replacement product

Features:

Additional info:

2 Megapixel 20x Auto Focus (f4.7~94mm) 32x Digital Zoom Defog WDR H.264: 30fps/1080p, MJPEG: 30fps/VGA IP66 PoE Supported 12VDC/5A SD Card support

Contact manufacturer Contact manufacturer

Datasheet Datasheet

Make	AFMVision
Manufacturer	AFMVision UK Technologies Ltd.
Category	Video Surveillance>IP Dome cameras
Model code	AFM-VPD200PM2Ti
Chip Inch Size	1/3
Color Type	Color / Monochrome
Resolution TVL	2 MP
HD	Yes
Megapixel	Yes
Sensitivity lux	0.001
Digital (DSP)	Yes
Electrical Specifications	Voltage: 12 V DC, PoE Power Consumption: 36 W
Focal length	4.7 ~ 94 mm
Compression	H.264, MJPEG
Back Light Compensation	Yes
Auto Gain Control	Yes
White Balance	Yes
Electronic Shutter range	1/30 (25) ~ 1/60.000 sec
Signal Mode	PAL, NTSC
Video Output	BNC x1, 1.0Vp-p, 75 ohm
Zoom Ratio	x20
Network Properties	Network Protocols: HTTP, HTTPS, FTP, SMTP, UPnP, DNS, DynDNS, NTP, RTSP, RTP, TCP, UDP, ICMP, DHCP Image Frame Rate: 30 fps
Physical Specifications	Dimensions mm: 200 x 408 Weight g: 3,200
Environmental Specifications	Operating Temp ^oC: -25 ~ +50 C (-13 ~ +122 F) Protection: IP66
Additional info	2 Megapixel 20x Auto Focus (f4.7~94mm) 32x Digital Zoom Defog WDR H.264: 30fps/1080p, MJPEG: 30fps/VGA IP66 PoE Supported 12VDC/5A SD Card support
Download PDF version Download PDF version
