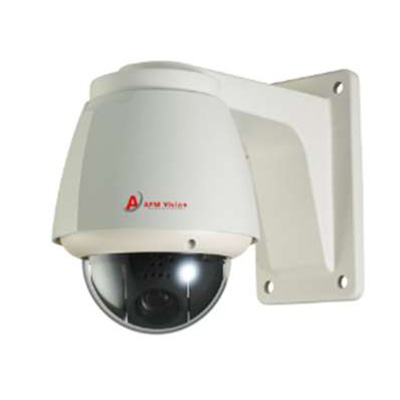

AFMVision AFM-VPD101PM2Ti Full HD 2 Megapixel Mini PTZ IP Camera X10 Zoom

Technical Specification

Please note: this is a discontinued product.

Go to Replacement product

AFMVision AFM-VPD101PM2Ti Full HD 2 Megapixel Mini PTZ IP Camera X10 Zoom

Features:

Make: AFMVision
Model code: AFM-VPD101PM2Ti
Series: K-Series
Chip Inch Size: 1/3
Color Type: Color / Monochrome

Additional info:

2 Megapixel 1/2.8" SONY progressive scan CMOS image sensor for excellent image quality (Exmor) 10x Auto Focus Optical Zoom 32x Digital Zoom Supports WDR, Defog, 2D/3DNR(Digital Noise Reduction) 360 degree endless panning H.264: 30fps/1080p, M.JPEG: 30fps/VGA (WDR ON : 15fps/1080p, 15fps/VGA) 12VDC/PoE (IEEE802.3af) Supported (or FAN/Heater Supported) Self-assembly Conformant with ONVIF Profile-S Includes Windows based IP Installer and license-free 16 channel NVR Software IP 66

Contact manufacturer Contact manufacturer

Datasheet Datasheet

Make	AFMVision
Manufacturer	AFMVision UK Technologies Ltd.
Category	Video Surveillance>IP Dome cameras
Model code	AFM-VPD101PM2Ti
Chip Inch Size	1/3
Color Type	Color / Monochrome
Resolution TVL	2MP
HD	Yes
Megapixel	Yes
Dome Type	PTZ
Sensitivity lux	0.001
Digital (DSP)	Yes
Electrical Specifications	Voltage: 12 V DC Power Consumption: 11 W
Focal length	5.1 ~ 51 mm
Compression	H.264, MJPEG
Back Light Compensation	Yes
Auto Gain Control	Yes
White Balance	Yes
Electronic Shutter range	1/30(25) ~ 1/60,000
S/ N (Signal/ Noise) Ratio dB	> 50
Zoom Ratio	x10
Network Properties	Network Protocols: HTTP, HTTPS, FTP, SMTP, UPnP, DNS, DDNS, NTP, RTSP, RTP, TCP, UDP, ICMP, DHCP Image Frame Rate: 15 fps
Physical Specifications	Dimensions mm: 140 x 160 Weight g: 1,710
Environmental Specifications	Operating Temp ^oC: -20 ~ +50 C (-4 ~ +122 F) Protection: IP66
Additional info	2 Megapixel 1/2.8" SONY progressive scan CMOS image sensor for excellent image quality (Exmor) 10x Auto Focus Optical Zoom 32x Digital Zoom Supports WDR, Defog, 2D/3DNR(Digital Noise Reduction) 360 degree endless panning H.264: 30fps/1080p, M.JPEG: 30fps/VGA (WDR ON : 15fps/1080p, 15fps/VGA) 12VDC/PoE (IEEE802.3af) Supported (or FAN/Heater Supported) Self-assembly Conformant with ONVIF Profile-S Includes Windows based IP Installer and license-free 16 channel NVR Software IP 66
