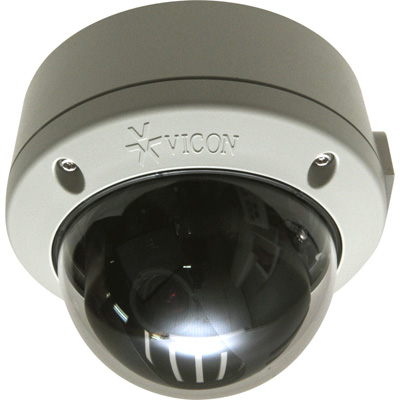

Vicon V921D-N39IR-IP True Day/night Network Camera

Technical Specification

Features:
  • Make: Vicon
  • Model code: V921D-N39IR-IP
  • Chip Inch Size: 1/3
  • Color Type: True Day / Night
  • Resolution TVL: 1280 x 720
Read more
Additional info:

Vicon V921D-N39IR-IP HD fixed network camera is designed for demanding security installations. It provides dual/triple-streaming video and supports H.264 compression technology, drastically reducing file sizes and conserving valuable network bandwidth. The camera is IP66 rated with a vandal-proof casing to withstand rain, dust, and vandalism.

Read more
Make Vicon
Manufacturer Vicon Industries
Model code V921D-N39IR-IP
Chip Inch Size 1/3
Color Type True Day / Night
Resolution TVL 1280 x 720
HD Yes
Dome Type Static
Sensitivity lux 0.01
Indoor/Outdoor Indoor/Outdoor
Digital (DSP) Yes
Mount Type In-ceiling, Wall
Electrical Specifications Voltage: 24 V AC
Power Consumption: 3.3/6.5 W
Focal length 3 ~ 9 mm
Compression H.264,MPEG-4, M-JPEG
Back Light Compensation Yes
Auto Gain Control Yes
White Balance Yes
Electronic Shutter range 1/4 ~ 1/20,000
Signal Mode NTSC/PAL
Built-in IR LED Yes
Zoom Ratio x1 ~ x10
Network Properties Interface: 10Base-T, 100Base-TX, RJ-45
Network Protocols: IPv4/IPv6, TCP/IP, HTTP, HTTPS, RTSP, RTCP, RTP, SMTP, DHCP, NTP, FTP, DDNS, UDP, SNMP, uPnP, ARP, QoS, Zeroconf, Bonjour, Manual
Image Frame Rate: 2.5 ~ 30 fps
Physical Specifications Dimensions mm: 154 x 127 x 110
Weight g: 1,100
Environmental Specifications Operating Temp oC: -40 ~ +50
Operating Humidity %: 0 ~ 90
Protection: IP66
System Requirments Web Browser: Internet Explorer®; Safari®, Firefox®, Google Chrome®, Opera®
Additional info

Vicon V921D-N39IR-IP HD fixed network camera is designed for demanding security installations. It provides dual/triple-streaming video and supports H.264 compression technology, drastically reducing file sizes and conserving valuable network bandwidth. The camera is IP66 rated with a vandal-proof casing to withstand rain, dust, and vandalism.
