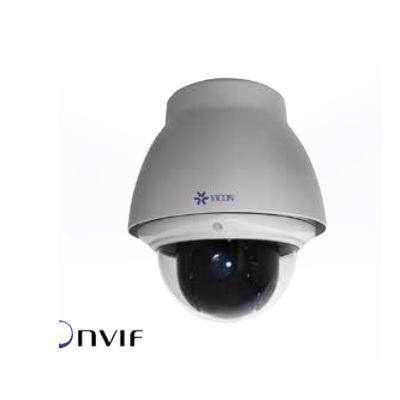

Vicon SN240D PTZ speed dome camera

Technical Specification

Please note: this is a discontinued product.

Go to Replacement product

Features:

Make: Vicon
Model code: SN240D
Chip Inch Size: 1/3
Color Type: True Day / Night
Resolution TVL: 2MP

Additional info:

1080p resolution (1920 x 1080) Min illumination: Color 0.35 lux, B/W: 0.013 lux 30X optical zoom and 16X digital zoom True WDR (120 db) Max 380°/sec speed (preset) Power-over-Ethernet (IEEE 802.3af), 12VDC/24VAC Privacy Masking

Contact manufacturer Contact manufacturer

Datasheet Datasheet

Make	Vicon
Manufacturer	Vicon Industries
Category	Video Surveillance>IP Dome cameras
Model code	SN240D
Chip Inch Size	1/3
Color Type	True Day / Night
Resolution TVL	2MP
Megapixel	Yes
Sensitivity lux	0.013 ~ 0.35
Digital (DSP)	Yes
Electrical Specifications	Voltage: 12 V DC, 24 V AC Power Consumption: 12.8 W
Focal length	4.3 ~ 129 mm
Compression	H.264, MJPEG
Back Light Compensation	Yes
Auto Gain Control	Yes
White Balance	Yes
Electronic Shutter range	1/30,000 ~ 1/3 s
Zoom Ratio	x16
Network Properties	Interface: 10Base-T, 100Base-TX, RJ-45 Network Protocols: IPv4/IPv6, TCP, HTTP, HTTPS, RTSP, RTCP, RTP, DHCP, UDP, ARP, UPnP, IGMP, SMTP, NTP, DNS, DDNS Image Frame Rate: 50 ~ 60 fps
Physical Specifications	Dimensions mm: 234 x 301 Weight g: 1,200
Environmental Specifications	Operating Temp ^oC: -50 ~ +65 C (-58 ~ +149 F) Operating Humidity %: 0 ~ 90 Protection: IP66, IK10
Additional info	1080p resolution (1920 x 1080) Min illumination: Color 0.35 lux, B/W: 0.013 lux 30X optical zoom and 16X digital zoom True WDR (120 db) Max 380°/sec speed (preset) Power-over-Ethernet (IEEE 802.3af), 12VDC/24VAC Privacy Masking
Download PDF version Download PDF version
