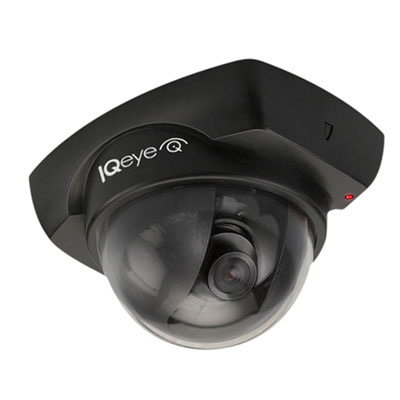

Vicon IQD65NV-F13 Megapixel Indoor Fixed Domes With PoE

Please note: this is a discontinued product.

Go to Replacement product

Features:

Additional info:

Resolutions up to 5 MP 264 WDR in 1, 2, 3 MP models True day/night Vandal dome ONVIF/PSIA compliant

Contact manufacturer Contact manufacturer

Datasheet Datasheet

Make	Vicon
Manufacturer	Vicon Industries
Category	Video Surveillance>IP Dome cameras
Model code	IQD65NV-F13
Chip Inch Size	1/3
Color Type	Color / Monochrome
Resolution TVL	5 MP
HD	Yes
Megapixel	Yes
Sensitivity lux	0 ~ 0.2
Indoor/Outdoor	Indoor/Outdoor
Digital (DSP)	Yes
Mount Type	Ceiling, Surface, Pendant, Wall
Electrical Specifications	Voltage: PoE Power Consumption: 4 W
Compression	H.264, M-JPEG
Back Light Compensation	Yes
Auto Gain Control	Yes
White Balance	Yes
Electronic Shutter range	1/8000
Built-in IR LED	Yes
Network Properties	Interface: 10Base-T, 100Base-TX, RJ-45 Network Protocols: TCP/IP, HTTP, HTTPS, DHCP, UDP, RTP, RTSP, DNS, ARP, ICMP, NTP, UPnP, ZeroConf, UDP multicast, APIPA, CIFS, SNMP, SMTP, Telnet Image Frame Rate: 10 fps Inclusive DVR/ Web Server: Inclusive SD Card
Physical Specifications	Dimensions mm: 115 x 71 x 74 Weight g: 300
Environmental Specifications	Operating Temp ^oC: 0 ~ 40 C (32 ~ 104 F)
Additional info	Resolutions up to 5 MP 264 WDR in 1, 2, 3 MP models True day/night Vandal dome ONVIF/PSIA compliant
