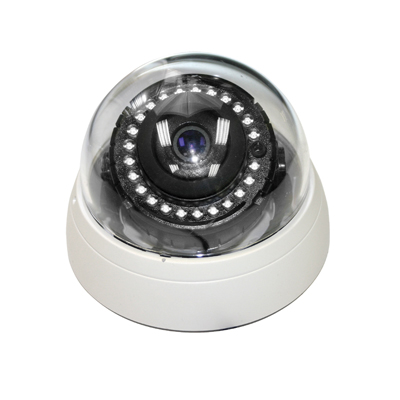

Vicon CE102D-NIR 1/2.8-inch Indoor IP Dome Camera
Technical Specification
- Make: Vicon
- Model code: CE102D-NIR
- Chip Inch Size: 1/3
- Color Type: True Day / Night
- Resolution TVL: 1920 x 1080
The Vicon’s CE102D-NIR IP dome camera is designed for indoor security installations. This cost-effective fixed network camera includes an integral 3.7 mm megapixel fixed lens. The 1080p resolution delivers crisp clear images. The CE102D-NIR provides triple-streaming video and supports H.264 compression technology, drastically reducing file sizes and conserving valuable network bandwidth. MPEG-4 and M-JPEG compressions are also provided. Privacy masking and motion detection features are provided. The true day/night camera includes a removable IR-cut filter for superior image quality around the clock; 24 IR LEDs provide illumination up to 65 ft (20 m). The camera dome can be manually tilted for a range of views.
Read more| Make | Vicon |
|---|---|
| Manufacturer | Vicon Industries |
| Category | Video Surveillance>IP Dome cameras |
| Model code | CE102D-NIR |
| Chip Inch Size | 1/3 |
| Color Type | True Day / Night |
| Resolution TVL | 1920 x 1080 |
| HD | Yes |
| Dome Type | Static |
| Indoor/Outdoor | Indoor |
| Digital (DSP) | Yes |
| Mount Type | Surface |
| Electrical Specifications |
Voltage: 12 V DC Power Consumption: 6 W |
| Focal length | 3.7 mm |
| Compression | H.264, MPEG-4, M-JPEG |
| Back Light Compensation | Yes |
| Auto Gain Control | Yes |
| White Balance | Yes |
| Electronic Shutter range | 1/30 ~ 1/20,000 sec |
| Built-in IR LED | Yes |
| Network Properties |
Interface: RJ-45, 10Base-T, 100Base-TX Network Protocols: IPv4, IPv6, Manual, TCP, IP, HTIP, HTIPS, RTSP/RTP/RTCP, SMTP, DHCP, NTP, DDNS, UDP, FTP, Bonjour Image Frame Rate: 30 fps |
| Physical Specifications |
Dimensions mm: 120 x 88 x 100 Weight g: 335 |
| Environmental Specifications |
Operating Temp oC: -10 ~ +45 C (14 ~ 113 F) Operating Humidity %: 0 ~ 90 |
| System Requirements | Web Browser: Internet explorer®, Safari®, Google Chrome®, Firefox® |
| Additional info | The Vicon’s CE102D-NIR IP dome camera is designed for indoor security installations. This cost-effective fixed network camera includes an integral 3.7 mm megapixel fixed lens. The 1080p resolution delivers crisp clear images. The CE102D-NIR provides triple-streaming video and supports H.264 compression technology, drastically reducing file sizes and conserving valuable network bandwidth. MPEG-4 and M-JPEG compressions are also provided. Privacy masking and motion detection features are provided. The true day/night camera includes a removable IR-cut filter for superior image quality around the clock; 24 IR LEDs provide illumination up to 65 ft (20 m). The camera dome can be manually tilted for a range of views. |
| Download PDF version Download PDF version | |
