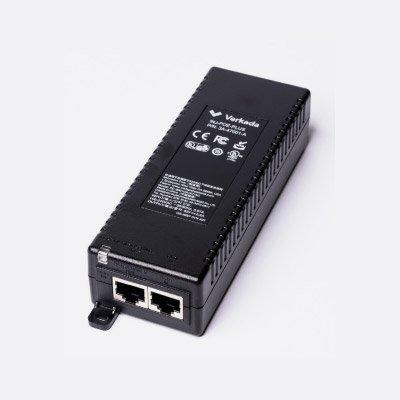

Verkada INJ-POE-PLUS PoE Injector

Technical Specification

Features:

Make: Verkada
Model code: INJ-POE-PLUS
Input Voltage: 100 ~ 240 V AC
Output Voltage: 55 V DC
Operating Temperature C: -20 ~ 55 C (-4 ~ 131 F)

Additional info:

A single port, high–power solution for remote powering of PoE enabled hardware, including Verkada security cameras, access control, and environmental sensors IEEE 802.3at compliant with 2–event classification IEEE 802.3af backward compatible Output power of 30W is guaranteed Supports 10/100/1000Base–T applications Compatible with IEEE 802.3af devices Safe – low power devices receive only the power they need Automatic Detection and Protection of non–standard Ethernet terminals Compact design fits easily in WLAN Access Point

Contact manufacturer Contact manufacturer Datasheet Datasheet

Make	Verkada
Manufacturer	Verkada Inc.
Category	Video Surveillance>Power supplies & batteries
Model code	INJ-POE-PLUS
Input Voltage	100 ~ 240 V AC
Output Voltage	55 V DC
Environmental Specifications	Operating Temperature C: -20 ~ 55 C (-4 ~ 131 F) Operating Humidity %: 90
Physical Specifications	Dimension mm: 52 x 35 x 161 Weight g: 200
Additional info	A single port, high–power solution for remote powering of PoE enabled hardware, including Verkada security cameras, access control, and environmental sensors IEEE 802.3at compliant with 2–event classification IEEE 802.3af backward compatible Output power of 30W is guaranteed Supports 10/100/1000Base–T applications Compatible with IEEE 802.3af devices Safe – low power devices receive only the power they need Automatic Detection and Protection of non–standard Ethernet terminals Compact design fits easily in WLAN Access Point
