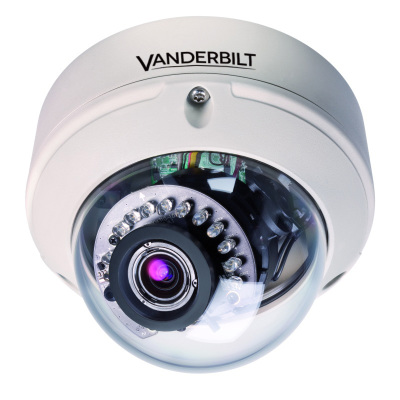

Vanderbilt CVVS1327-LPOIR Vandal Dome-Camera
Technical Specification
- Make: Vanderbilt
- Model code: CVVS1327-LPOIR
- Color Type: True Day / Night
- Resolution TVL: > 650
- Digital (DSP): Yes
The CVVS1317-LPOIR vandal dome-camera features an adjustable varifocal lens, integrated IR illumination and IP66 and IK10 vandal-proof outdoor housing. The electronic design is based on latest 960H technologies delivering detailed video resolution up to 700 TVL. The CVVS1317LPOIR features built-in IR illuminators effective up to 15 meters and true day/night function that switches automatically between color or B/W mode based on ambient illumination to maintain crystal clear images all day long. The integrated OSD setup menu supporting multiple languages allows individual setup of the camera to fulfil all major environmental requirements. A number of advanced features like 2D DNR, ATR, HLC, safety cord and power alternative (DC 12V / AC 24V) make the CVVS1317-LPOIR an excellent choice for professional outdoor surveillance and security applications.
Read more| Make | Vanderbilt |
|---|---|
| Manufacturer | Vanderbilt Industries |
| Category | Video Surveillance>Dome cameras |
| Model code | CVVS1327-LPOIR |
| Color Type | True Day / Night |
| Resolution TVL | > 650 |
| Digital (DSP) | Yes |
| Indoor/Outdoor | Outdoor |
| Electrical Specifications |
Voltage: 12 V DC / 24 V AC Power Consumption: 5 W |
| Focal length | 2.8 ~ 10.5mm |
| Back Light Compensation | Yes |
| Auto Gain Control | Yes |
| White Balance | Yes |
| Electronic Shutter range | 1/50 ~ 1/1,00,000s |
| S/ N (Signal/ Noise) Ratio dB | 48 dB |
| Synchronisation | Internal, line-lock |
| Signal Mode | PAL |
| Built-in IR LED | Yes |
| Video Output | 1 Vpp, 75 Ohm, BNC |
| Physical Specifications |
Dimensions mm: 135 x 109 Weight g: 680 |
| Environmental Specifications |
Operating Temp oC: -10 ~ +50 C (14 ~ 122 F) Operating Humidity %: 90 Protection: IP66, IK10 |
| Additional info |
The CVVS1317-LPOIR vandal dome-camera features an adjustable varifocal lens, integrated IR illumination and IP66 and IK10 vandal-proof outdoor housing. The electronic design is based on latest 960H technologies delivering detailed video resolution up to 700 TVL. The CVVS1317LPOIR features built-in IR illuminators effective up to 15 meters and true day/night function that switches automatically between color or B/W mode based on ambient illumination to maintain crystal clear images all day long. The integrated OSD setup menu supporting multiple languages allows individual setup of the camera to fulfil all major environmental requirements. A number of advanced features like 2D DNR, ATR, HLC, safety cord and power alternative (DC 12V / AC 24V) make the CVVS1317-LPOIR an excellent choice for professional outdoor surveillance and security applications. |
