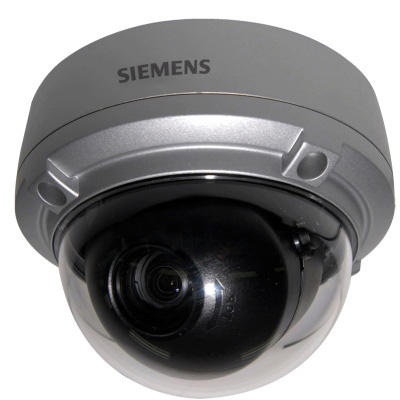

Siemens CVAW1417-LP 1/4 Day/night Dome Camera
Technical Specification
Features:
- Make: Vanderbilt
- Model code: CVAW1417-LP
- Chip Inch Size: 1/4
- Color Type: Color / Monochrome
- Resolution TVL: 560
Additional info:
The CVAW1417-LP is a high-resolution (560 TVL) day/night dome camera with built-in autofocus zoom lens with max. 22x zoom. The camera is designed for outdoor use under variable lighting conditions. It is built into a compact and attractively styled vandalresistant housing.
Read more| Make | Vanderbilt |
|---|---|
| Manufacturer | Vanderbilt Industries |
| Category | Video Surveillance>Dome cameras |
| Model code | CVAW1417-LP |
| Chip Inch Size | 1/4 |
| Color Type | Color / Monochrome |
| Resolution TVL | 560 |
| Sensitivity lux | 0.05 |
| Indoor/Outdoor | Outdoor |
| Digital (DSP) | Yes |
| Electrical Specifications | Voltage: 24 V AC |
| Focal length | 3.9 ~ 85.8 |
| Presets | 10 |
| Back Light Compensation | Yes |
| Auto Gain Control | Yes |
| White Balance | Yes |
| Electronic Shutter range | 1/100.000 |
| S/ N (Signal/ Noise) Ratio dB | 50 |
| Synchronisation | Line-Lock |
| Video Output | 1.0 Vpp (75 ohms, composite) |
| Zoom Ratio | x22 |
| Physical Specifications | Weight g: 1,100 |
| Environmental Specifications |
Operating Temp oC: -20 ~ +60 Operating Humidity %: 0 ~ 96 Protection: IP66, |
| Additional info |
The CVAW1417-LP is a high-resolution (560 TVL) day/night dome camera with built-in autofocus zoom lens with max. 22x zoom. The camera is designed for outdoor use under variable lighting conditions. It is built into a compact and attractively styled vandalresistant housing. |
