Vandal resistant stainless steel Mounts Intercom and Access Control device together Any 1-gang Audio-only or Audio Video Door Station can be used Blank faceplate allows wide range of mounting options Hooded covering to protect units from direct exposure to weather Tamper resistant mounting hardware

ASSISTANCE lettering Strobe is always lit; flashes during emergency call-in (requires 24V DC) Camera arm with universal pipe threading Weather and vandal resistant Lightweight LED for station illumination in station over-hang (requires 24V DC) Call button mounting height and signage meet ADA regulations UL-514-A listed electrical box included at the base Access panels at the base and middle of the tower

ASSISTANCE lettering Strobe is always lit; flashes during emergency call-in (requires 24V DC) Weather and vandal resistant Lightweight LED for station illumination in station over-hang (requires 24V DC) Call button mounting height and signage meet ADA regulations UL-514-A listed electrical box included at the base Access panels at the base and middle of the tower

Aiphone GF-3P is a 3-call button panel for GT-SW.

Allows one PS-2420UL to power up four GT-1C7W app-enabled tenant stations Replaces existing GT-4Z adaptors in a standard GT system, and requires 1 PS-2420UL per GT-4ZP Includes 4 power jumpers (GTW-24J) that are to be installed on the GT-1C7W between the B1/B2 and +/- terminals, which provides power to the GT-1C7W without having to install a local PS-2420UL for each tenant station

Aiphone W-DIN11 is a steel mounting bracket for DIN rail devices.

Allows up to 7 JP-4HD sub-stations to be homerun to the JP-4MED answering station, avoiding the need to daisy chain substations Connects to the JP-4MED via Cat5e/6 and powers the attached substations using up to 2 PS-2420UL power supplies

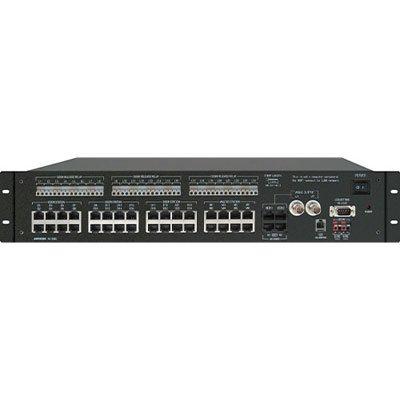

Wiring hub for AX Series using Cat-5e Two 24V DC power supply input terminals Rack mountable Controls all functionality of AX Series Two BNC composite video outputs and video switching triggers CO line transfer (requires Viking K-1900-5 programmable auto-dialer) Programmable functionality via supplied software

16-Gauge stainless steel lockable enclosure gives added protection to video door stations after business hours Designed to be mounted with AX-DV or AX-DVF

Steel construction Six conduit knockouts

Provides a 24V DC output to power the strobe light in Aiphone’s wall boxes and towers The IX Series emergency stations have a secondary PoE output (passthrough) that can be used to connect to this splitter The PoE passthrough will only be usable if the IX Series station is connected and powered via a PoE+ switch

Provides a normally open dry contact closure upon call-in at a tenant station Also provides a contact to turn on external light at entrance station when calling tenant station

Stainless steel construction One conduit knockout on the bottom side One or two-gang mounting hole pattern Built-in rain hood

18V DC, 2 Amp Power Supply UL Listed

Provides a better viewing angle for the camera Compatible with Aiphone 1-gang surface mount door stations Angles 1-gang door stations outward by 30° Can mount to either right or left of door Hinged cover for mounting door station

Aiphone GT-VP is a vandal resistant panel for GT-VB camera module.

Works with existing 2-conductor wire Supplies PoE to stations Rack mount receiver LED status indicators

Works with existing 2-conductor wire Supplies PoE to stations LED status indicators

Weather resistant Includes the SBX 2G/A surface mount box and PS POE splitter to power the sensor Powered from either a PoE network drop or from the LAN 2 output on an IX Series door station (requires PoE+ switch) Form C dry contact output can be connected to the trigger input of an IX Series door station Allows visitors to place a call without touching the call button on the door station Sensor is illuminated in blue while in standby and turns green when activated

PoE (IEEE 802.3af class 0) DIN rail mountable Eight simultaneous calls per adaptor Supports up to 9,999 IXG mobile apps Optional 4G LTE data connection Allows telephone calls from door and entrance stations

Vandal-resistant with 16-gauge stainless steel construction Flexible design can be mounted to either side of the door 1-gang hole pattern allows for easy installation

PoE compliant 20 Form C relays Relay rating (24V AC/DC, 500mA) 16 adaptors per building max.

Supports up to 500 registered SIP devices and up to 75 concurrent calls Dual Gigabit network ports with integrated PoE+ Built-in call recording server; recordings accessed via web interface Built-in call detail records for tracking phone usage Supports any SIP video endpoint Supports voice mail Supports call queue for call volume management

Eight 10/100/1000 BASE-T PoE ports 64W PoE power budget Supports IEEE 802.3at PoE Quiet, fanless design Web interface for management

802.3af PoE Four contact inputs Ten Form C relay outputs 24V AC/DC 500mA relay contact rating Mountable to a 170mm DIN rail or directly to a wall

7" touchscreen 802.3af PoE microSD card slot for added memory Place calls to other stations within tenant Call concierge/guard Call elevator to floor Monitor door stations

T-Coil hearing aid compatibility PoE compliant 7" LCD color touchscreen Hands-free audio communication microSD card slot for added memory Place calls to other stations within tenant Call concierge/guard Call elevator to floor Monitor door stations

7" touchscreen 802.3af PoE On-board recording with microSD™ card Simple user interface T-coil hearing aid compatible Hands-free audio communication 1.23 megapixel fixed video camera Up to 9,999 names/numbers can be stored Programmable contact inputs and outputs Motion sensor to activate LCD Built-in HID reader for card access Stainless steel panel Rugged IP65 and IK08 ratings Tamper sensor
