Aiphone GT-203HB is a vandal resistant 2x3-module surface mount box for GT Series entrance panel.

Aiphone GT-104HB is a vandal resistant 1x4-module hooded surface mount box for GT Series entrance panel.

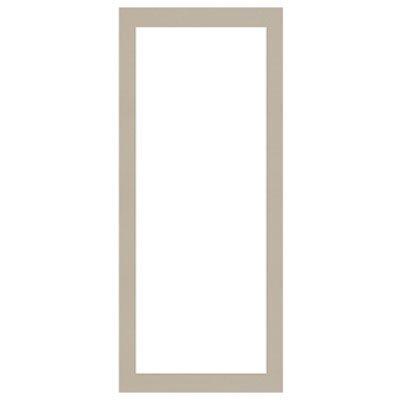

Aiphone GF-3F is a vandal resistant 3-module front frame.

Aiphone GT-4F is a vandal resistant 4-module front frame for GT Series Modular Entrance Stations.

Aiphone GF-3B is a flush mount 3-module back box.

Aiphone GT-OP3 is a 3-module postal lock with frame.

Aiphone SBX-GTDMB is a stainless steel surface mount box.

Aiphone GT-BCXB-N expanded bus control unit distributes power and data to GT Series stations for expanded systems.

Aiphone GTW-DP is a distribution point terminal slip for R1/R2 audio lines.

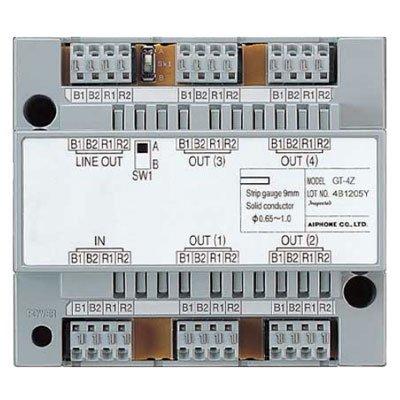

4-way video distribution adaptor Tenant station trunk line adaptor, up to 4 stations

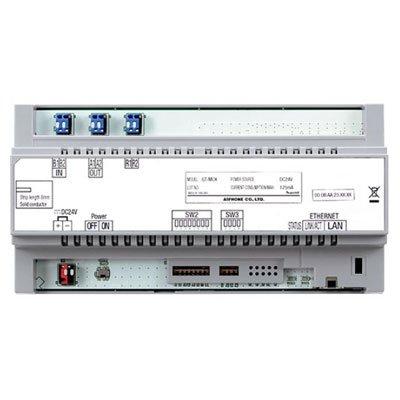

Allows multiple buildings to communicate across a single, logical network Allows up to 480 Entrances, 96 Guard Stations, and 5,000 tenants

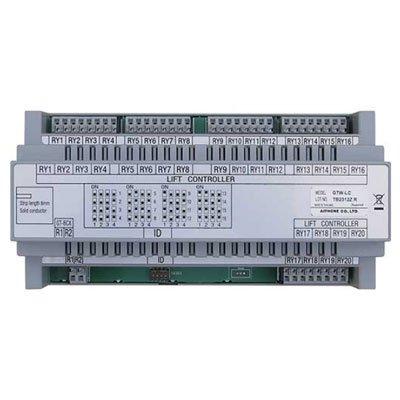

Used to call up elevator to specific floor Programmable for desired functionality 20 relay outputs Operating time from 1 second to 600 seconds

Provides selective door release capability Compatible with JP, JF, and KB Series Both normally open and normally closed output options

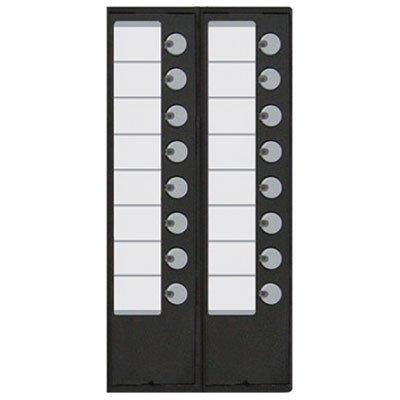

Provides ability to select/call 16 additional door/sub stations Mounts directly to Master Station or other AX-16SW with supplied brackets

24V DC, 2 Amp Power Supply UL Listed

Interfaces AX video door station with 3rd party alternate transmission methods for longer distances Receiver module for fiber connection

Interfaces AX video door station with 3rd party alternate transmission methods for longer distances Transmitter module for fiber connection

Wiring hub for AX Series system using Cat-5e Two 24V DC power supply input terminals Rack mountable

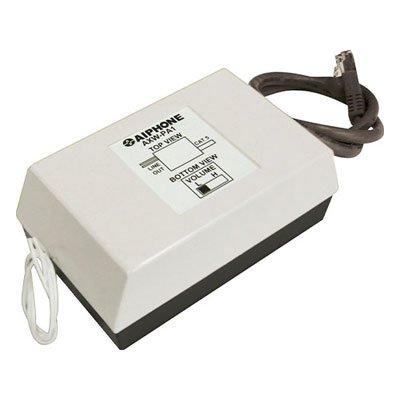

Page from an intercom master station through PA system Takes the place of a separate microphone for paging where there is an intercom School uses: page hallways, playground areas, cafeteria, etc. Medical facilities and/or office uses: page waiting areas, hallways, break rooms, etc.

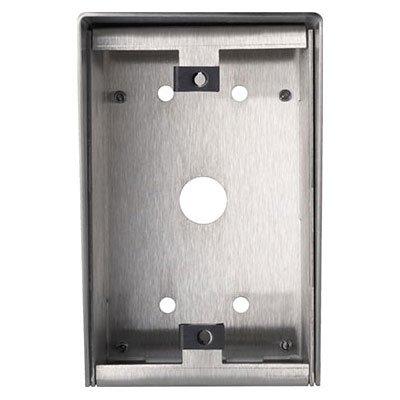

Weather resistant Vandal resistant Inside space for cabling Mounts to flat wall surface Opening at bottom for drainage

Stainless steel surface mount box for card reader door stations Weather resistant Vandal resistant Inside space for cabling Mounts to flat wall surface Opening at bottom for drainage

Allows an external device to be triggered when the intercom is called External device will be activated momentarily as long as the call button on the door station is activated

Allows two master stations to answer a single door station Combined use with RY-AC/A for external signaling

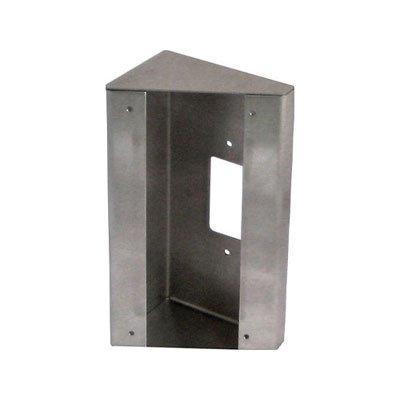

Weather resistant Vandal resistant Inside space for cabling Mounts to flat wall surface

15 V AC transformer UL Listed

PoE compliant 20 Form C relays Relay rating (24V AC/DC 500mA) Max of 16 adaptors per building

 A UL listed 12V DC, 5A plug-in power supply Used to power ACS-2DR two-door access control starter kit and ACS-IO I/O starter kit

Flexible design can overhang mullion on either side of the door Wire cutouts allow for installation when there is an external conduit Clearance for Cat-5/6 cables prevents overbending
