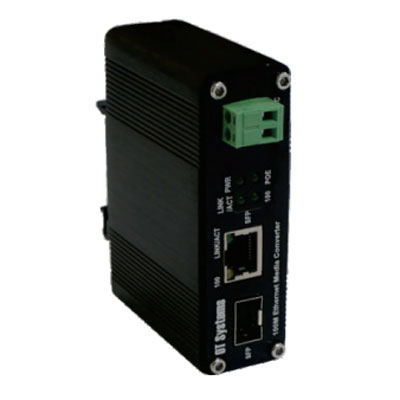

OT Systems ET1111PpH 100BASE SFP Ethernet Media Converter

Technical Specification

Features:
  • Make: OT Systems
  • Model code: ET1111PpH
  • Interface: 100BASE SFP, RJ45
  • Dimensions mm: 96 x 80 x 31
  • Weight g: 250
Additional info:

OT Systems ET1111PpH is a 100BASE SFP ethernet media converter that features: Converts 100BASE-TX to 100BASE SFP Supports IEEE802.3at PoE+(30W) Supports Full/Half duplex Supports external 100BASE SFP Supports Auto MDI/MDI-X

Read more
Make OT Systems
Manufacturer OT-Morpho
Model code ET1111PpH
Interface 100BASE SFP, RJ45
Physical Specifications Dimensions mm: 96 x 80 x 31
Weight g: 250
Electrical Specifications Power Consumption: 36 W
Voltage: 48 V DC
Environmental Specifications Operating Temperature oC: -40 ~ +75 C (-40 ~ +167 F)
Operating Humidity %: 5 ~ 95
Additional info OT Systems ET1111PpH is a 100BASE SFP ethernet media converter that features:

  • Converts 100BASE-TX to 100BASE SFP
  • Supports IEEE802.3at PoE+(30W)
  • Supports Full/Half duplex
  • Supports external 100BASE SFP
  • Supports Auto MDI/MDI-X
Download PDF version
