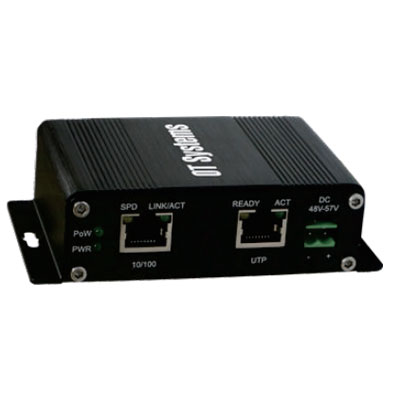

OT Systems ET1100UPp-T 10/100BASE-TX Ethernet Over UTP Extender

Technical Specification

Features:
  • Make: OT Systems
  • Model code: ET1100UPp-T
  • Interface: 10/100BASE-TX, RJ45
  • Dimensions mm: 114 x 72 x 31
  • Weight g: 250
Additional info:

OT Systems ET1100UPp-T is a 10/100BASE-TX ethernet over UTP extender that features: PoE+(30W) and Power over Wire 802.af/802.3at Compliant Data Rate up to: 90Mbps(Downlink), 90Mbps (Uplink) Support Wall Mount installation

Read more
Make OT Systems
Manufacturer OT-Morpho
Model code ET1100UPp-T
Interface 10/100BASE-TX, RJ45
Physical Specifications Dimensions mm: 114 x 72 x 31
Weight g: 250
Electrical Specifications Voltage: 48 V DC
Power Consumption: 60 W
Environmental Specifications Operating Temperature oC: -10 ~ +60 C (14 ~ 140 F)
Operating Humidity %: 5 ~ 95
Additional info OT Systems ET1100UPp-T is a 10/100BASE-TX ethernet over UTP extender that features:

  • PoE+(30W) and Power over Wire
  • 802.af/802.3at Compliant
  • Data Rate up to: 90Mbps(Downlink), 90Mbps (Uplink)
  • Support Wall Mount installation
