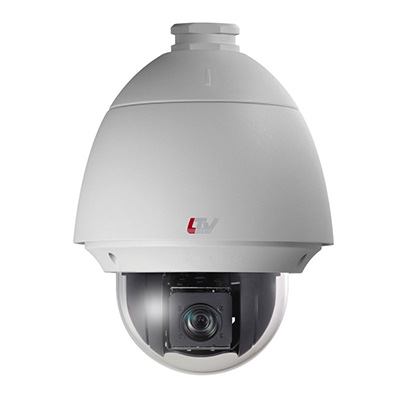

LTV Europe LTV-SDNO36-HV 700 TV Lines Analog Outdoor Dome Camera

Technical Specification

Please note: this is a discontinued product.

Go to Replacement product

LTV Europe LTV-SDNO36-HV 700 TV Lines Analog Outdoor Dome Camera

Features:

Make: LTV Europe
Model code: LTV-SDNO36-HV
Chip Inch Size: 1/4
Color Type: Color / Monochrome
Resolution TVL: 700

Additional info:

LTV Europe LTV-SDNO36-HV is a day/night speed dome camera with transparent dome and RS-485 communication. The camera is password protected and has zone scanning as well as programmable title display. It has 2 alarm input and 2 alarm relay output. It has x36 optical and x16 digital zoom.

Contact manufacturer Contact manufacturer

Datasheet Datasheet

Make	LTV Europe
Manufacturer	LTV Europe Sicherheitstechnik GmbH
Category	Video Surveillance>Dome cameras
Model code	LTV-SDNO36-HV
Chip Inch Size	1/4
Color Type	Color / Monochrome
Resolution TVL	700
Sensitivity lux	0.00008
Dome Type	PTZ
Pan Speed ^o/ sec	0.1 ~ 300
Digital (DSP)	Yes
Tilt Speed ^o/ sec	: 0.1 ~ 240
Indoor/Outdoor	Outdoor
Mount Type	Wall, Pole
Electrical Specifications	Voltage: 24 V AC Power Consumption: 40 W
Focal length	3.3 ~ 119mm
Presets	256
Back Light Compensation	Yes
Auto Gain Control	Yes
White Balance	Yes
Electronic Shutter range	1/3 ~ 1/10,000s
S/ N (Signal/ Noise) Ratio dB	>50
Signal Mode	PAL, NTSC
Zoom Ratio	x16
Physical Specifications	Dimensions mm: 220 x 326 Weight g: 5,000
Environmental Specifications	Operating Temp ^oC: -30 ~ +65 C (-22 ~ +149 F) Operating Humidity %: 90 Protection: IP66
Additional info	LTV Europe LTV-SDNO36-HV is a day/night speed dome camera with transparent dome and RS-485 communication. The camera is password protected and has zone scanning as well as programmable title display. It has 2 alarm input and 2 alarm relay output. It has x36 optical and x16 digital zoom.
