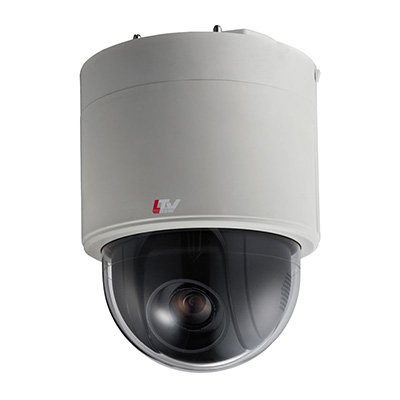

LTV Europe LTV-SDNI23-HV 700 TV Lines Day/night Analog Outdoor Dome Camera

Technical Specification

Features:
  • Make: LTV Europe
  • Model code: LTV-SDNI23-HV
  • Chip Inch Size: 1/3
  • Color Type: Color / Monochrome
  • Resolution TVL: 700
Read more
Additional info:

LTV Europe LTV-SDNI23-HV is an antivandal dome camera with a minimum illumination of 0.00008. The camera has wide dynamic range as well as 32 presets per patrol,

Read more
Make LTV Europe
Manufacturer LTV Europe Sicherheitstechnik GmbH
Model code LTV-SDNI23-HV
Chip Inch Size 1/3
Color Type Color / Monochrome
Resolution TVL 700
Dome Type PTZ
Sensitivity lux 0.00008
Pan Speed o/ sec 0.1 ~ 250
Tilt Speed o/ sec 0.1 ~ 150
Indoor/Outdoor Outdoor
Digital (DSP) Yes
Mount Type Wall, Corner
Electrical Specifications Voltage: 24 V AC
Power Consumption: 20 W
Focal length 4 ~ 92mm
Presets 256
Back Light Compensation Yes
Auto Gain Control Yes
White Balance Yes
Electronic Shutter range 1~ 1/10,000s
S/ N (Signal/ Noise) Ratio dB >50
Signal Mode PAL, NTSC
Zoom Ratio x16
Physical Specifications Dimensions mm: 220 x 305
Weight g: 5,000
Environmental Specifications Operating Temp oC: -30 ~ +65°C (-22 ~ +149 F)
Operating Humidity %: 90
Protection: IP66
Additional info LTV Europe LTV-SDNI23-HV is an antivandal dome camera with a minimum illumination of 0.00008. The camera has wide dynamic range as well as 32 presets per patrol,
Download PDF version
