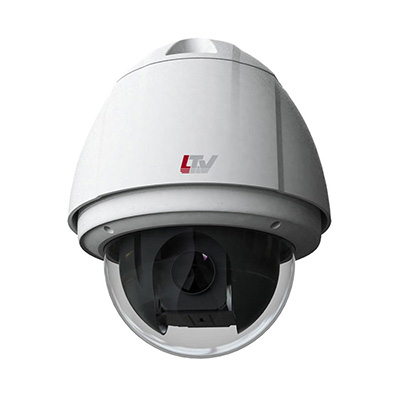

LTV Europe LTV-ISDNO20-EM2 2 Megapixel PTZ Camera

Technical Specification

Please note: this is a discontinued product.

Go to Replacement product

LTV Europe LTV-ISDNO20-EM2 2 Megapixel PTZ Camera

Features:

Make: LTV Europe
Model code: LTV-ISDNO20-EM2
Chip Inch Size: 1/3
Color Type: Color / Monochrome
Resolution TVL: 2 MP

Additional info:

LTV Europe LTV-ISDNO20-EM2 is a PTZ camera with DC iris control and optical and digital zoom. The camera includes heater and fan as well as G.711A audio compression format.

Contact manufacturer Contact manufacturer Datasheet Datasheet

Make	LTV Europe
Manufacturer	LTV Europe Sicherheitstechnik GmbH
Category	Video Surveillance>Dome cameras
Model code	LTV-ISDNO20-EM2
Chip Inch Size	1/3
Color Type	Color / Monochrome
Resolution TVL	2 MP
HD	Yes
Dome Type	PTZ
Sensitivity lux	0.05
Indoor/Outdoor	Outdoor
Digital (DSP)	Yes
Focal length	4.7 ~ 94.0 mm
Compression	H.264
Back Light Compensation	Yes
Auto Gain Control	Yes
White Balance	Yes
Electronic Shutter range	1/25 ~ 1/10,0000s
S/ N (Signal/ Noise) Ratio dB	>50
Video Output	BNC 1.0 Vp-p
Zoom Ratio	x20
Network Properties	Interface: 10/100BASE-T Network Protocols: IPv4, ONVIF, TCP/IP, UDP/IP, RTP(UDP), RTSP, NTP, HTTP, DNS, DDNS, DHCP, FTP, SMTP, TCP/IP Image Frame Rate: 25 fps Inclusive DVR/ Web Server: Micro SD
Electrical Specifications	Power Consumption: 24 W
Physical Specifications	Dimensions mm: 219 x 310 Weight g: 5,000
Environmental Specifications	Operating Temp ^oC: -45 ~ +60 C (-49 ~ +140 F) Protection: IP66
System Requirements	Web Browser: Internet Explorer
Additional info	LTV Europe LTV-ISDNO20-EM2 is a PTZ camera with DC iris control and optical and digital zoom. The camera includes heater and fan as well as G.711A audio compression format.
Download PDF version Download PDF version
