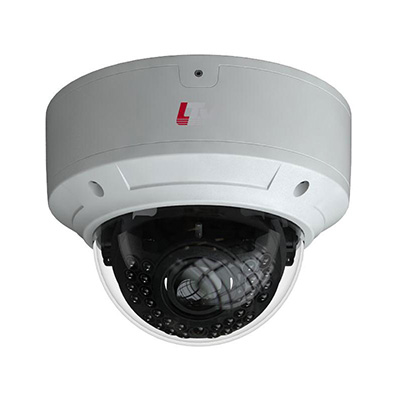

LTV Europe LTV-ICDM2-E8231L-V3-10.5 2 Megapixel IR Dome Camera

Technical Specification

Features:
  • Make: LTV Europe
  • Model code: LTV-ICDM2-E8231L-V3-10.5
  • Chip Inch Size: 1/3
  • Color Type: Color / Monochrome
  • Resolution TVL: 2 MP
Read more
Additional info:

LTV Europe LTV-ICDM2-E8231L-V3-10.5 is an IR dome camera with G.711A audio compression format and SD card memory slot. The camera has motion detection as well as alarm input/output.

Read more
Make LTV Europe
Manufacturer LTV Europe Sicherheitstechnik GmbH
Model code LTV-ICDM2-E8231L-V3-10.5
Chip Inch Size 1/3
Color Type Color / Monochrome
Resolution TVL 2 MP
HD Yes
Dome Type Static
Indoor/Outdoor Outdoor
Digital (DSP) Yes
Electrical Specifications Voltage: 12 V DC
Focal length 3 ~ 10.5mm
Compression H.264
Back Light Compensation Yes
Auto Gain Control Yes
White Balance Yes
Electronic Shutter range 1/25 ~ 1/100000s
Built-in IR LED Yes
Video Output 1.0 Vp-p / 75 Ohm composite
Network Properties Interface: RJ45
Network Protocols: TCP/IP, UDP, DHCP, NTP, RTSP, PPPoE, DDNS, SMTP, FTP
Image Frame Rate: 25 fps
Inclusive DVR/ Web Server: SD
Physical Specifications Dimensions mm: 150 x 114
Weight g: 900
Environmental Specifications Operating Temp oC: -40 ~ +50 C (-40 ~ +122 F)
Protection: IP66
System Requirments Web Browser: Internet Explorer
Additional info LTV Europe LTV-ICDM2-E8231L-V3-10.5 is an IR dome camera with G.711A audio compression format and SD card memory slot. The camera has motion detection as well as alarm input/output.
