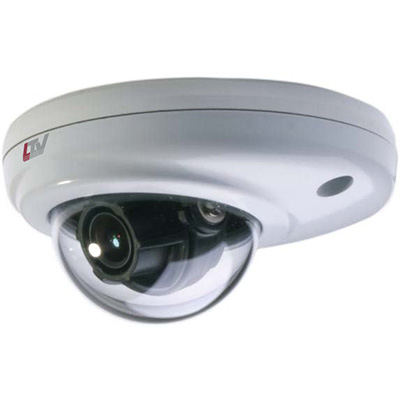

LTV Europe LTV-ICDM2-A723-F2.8 Compact Indoor Dome Camera

Technical Specification

Please note: this is a discontinued product.

Go to Replacement product

LTV Europe LTV-ICDM2-A723-F2.8 Compact Indoor Dome Camera

Features:

Make: LTV Europe
Model code: LTV-ICDM2-A723-F2.8
Chip Inch Size: 1/3
Color Type: Color / Monochrome
Resolution TVL: 2 MP

Additional info:

LTV Europe LTV-ICDM2-A723-F2.8 is a compact indoor dome camera with burnt-in text and video motion detection. It also has ONVIF support and vandal-resistant IK-09 rating.

Contact manufacturer Contact manufacturer

Datasheet Datasheet

Make	LTV Europe
Manufacturer	LTV Europe Sicherheitstechnik GmbH
Category	Video Surveillance>Dome cameras
Model code	LTV-ICDM2-A723-F2.8
Chip Inch Size	1/3
Color Type	Color / Monochrome
Resolution TVL	2 MP
HD	Yes
Dome Type	Static
Sensitivity lux	0.001
Digital (DSP)	Yes
Indoor/Outdoor	Indoor
Electrical Specifications	Voltage: PoE
Focal length	2.8mm
Compression	H.264, MJPEG
Back Light Compensation	Yes
Auto Gain Control	Yes
White Balance	Yes
Electronic Shutter range	1/10000 ~ 1/2s
S/ N (Signal/ Noise) Ratio dB	>48
Network Properties	Interface: 10BASE-T, 100BASE-T Image Frame Rate: 30 fps Inclusive DVR/ Web Server: Micro SD
Physical Specifications	Dimensions mm: 105 x 56 Weight g: 270
Environmental Specifications	Operating Temp ^oC: 0 ~ 40 C (32 ~ 104 F)
System Requirements	Web Browser: Internet Explorer 7.0 or higher, Firefox, Chrome, PDA / Smartphone
Additional info	LTV Europe LTV-ICDM2-A723-F2.8 is a compact indoor dome camera with burnt-in text and video motion detection. It also has ONVIF support and vandal-resistant IK-09 rating.
Download PDF version Download PDF version
