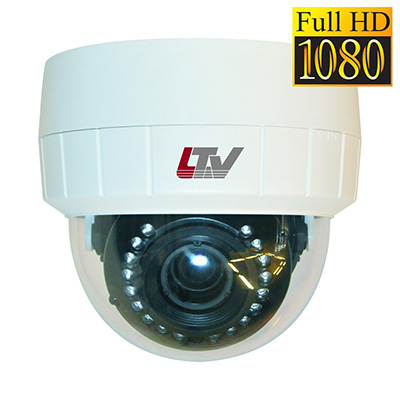

LTV Europe LTV-ICDM2-723L-V3-9 2 Megapixel IR Indoor Dome Camera

Technical Specification

Features:
  • Make: LTV Europe
  • Model code: LTV-ICDM2-723L-V3-9
  • Chip Inch Size: 1/3
  • Color Type: Color / Monochrome
  • Resolution TVL: 2 MP
Read more
Additional info:

LTV Europe LTV-ICDM2-723L-V3-9 IR indoor dome camera has triple power supply as well as audio input/output. It also has 4 zones, 10 sensitivity levels motion detection.

Read more
Make LTV Europe
Manufacturer LTV Europe Sicherheitstechnik GmbH
Model code LTV-ICDM2-723L-V3-9
Chip Inch Size 1/3
Color Type Color / Monochrome
Resolution TVL 2 MP
HD Yes
Dome Type Static
Digital (DSP) Yes
Indoor/Outdoor Indoor
Electrical Specifications Voltage: 12 V DC
Power Consumption: 7.6 W
Focal length 3.9mm
Compression H.264, MJPEG
Back Light Compensation Yes
Auto Gain Control Yes
White Balance Yes
Electronic Shutter range 1/4 - 1/2000s
S/ N (Signal/ Noise) Ratio dB >50
Signal Mode PAL, NTSC
Built-in IR LED Yes
Network Properties Interface: 10BASE-T, 100BASE-TX, RJ45
Network Protocols: IPv4/6, HTTP, HTTPS, SMTP, UPnP, DNS, Dynamic DNS,NTP, RTSP, RTP, TCP, UDP, IGMP, RTCP, ICMP, DHCP, ARP
Image Frame Rate: 25 fps
Physical Specifications Dimensions mm: 125 x 119
Weight g: 400
Environmental Specifications Operating Temp oC: 0 ~ 40 C (32 ~ 104 F)
System Requirments Web Browser: Internet Explorer 7.0 or higher, Firefox, Chrome, PDA/smartphone
Additional info LTV Europe LTV-ICDM2-723L-V3-9 IR indoor dome camera has triple power supply as well as audio input/output. It also has 4 zones, 10 sensitivity levels motion detection.
Download PDF version
