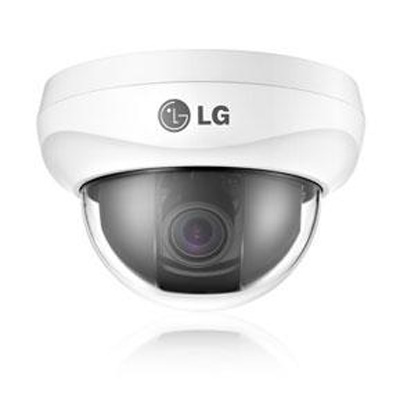

LG Electronics LCD5300-BP Dome camera
Technical Specification
Features:
- Make: LG Electronics
- Model code: LCD5300-BP
- Chip Inch Size: 1/3
- Color Type: True Day / Night
- Resolution TVL: 650
| Make | LG Electronics |
|---|---|
| Manufacturer | LG Electronics Inc. |
| Category | Video Surveillance>Dome cameras |
| Model code | LCD5300-BP |
| Chip Inch Size | 1/3 |
| Color Type | True Day / Night |
| Resolution TVL | 650 |
| Sensitivity lux | 0.000001 |
| Digital (DSP) | Yes |
| Electrical Specifications | Voltage: 24 VAC |
| Focal length | 2.8 ~ 11 mm |
| Back Light Compensation | Yes |
| Auto Gain Control | Yes |
| White Balance | Yes |
| Electronic Shutter range | 1/50 ~ 1/120,000 s |
| S/ N (Signal/ Noise) Ratio dB | 50 |
| Synchronisation | Internal / Line Lock |
| Signal Mode | PAL |
| Video Output | 1Vp-p Composite (75 ohms) |
| Zoom Ratio | x16 |
| Physical Specifications | Dimensions mm: 140 x 96 |
| Environmental Specifications |
Operating Temp oC: -10 ~ +50 Operating Humidity %: 0 ~ 80 |
