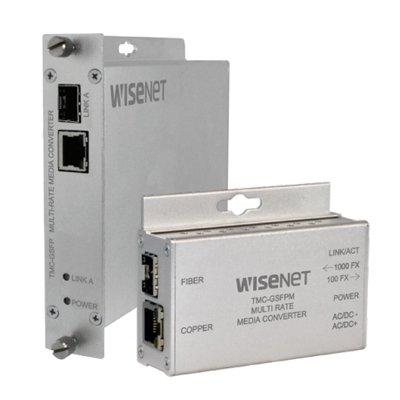

Hanwha Techwin TMC-GSFP 10/100/1000Mbps Multi-Rate Media Converter, 100FX/1000FX Selectable
Technical Specification
- Make: Hanwha Vision
- Model code: TMC-GSFP
- Series: TMC-GSFP Series
- Dimensions mm: 84 x 64 x 28
- Weight g: 900
The TMC-GSFP electrical-to-optical Ethernet media converters accept a 10/100 or 1000 Mbps electrical input and converts to a 100 or 1000 Mbps optical output (selected by a dip switch) and the 100/1000 Mbps optical input back to the 10/100/1000 Mbps electrical output. “Auto-Negotiating” is supported on the copper interface side. These devices use either one or two optical fibers, depending upon the selection of sold-separately SFP† optical module.
Read more| Make | Hanwha Vision |
|---|---|
| Manufacturer | Hanwha Vision America |
| Category | Video Surveillance>Switchers & Switches |
| Model code | TMC-GSFP |
| Series | TMC-GSFP Series |
| Physical Specifications |
Dimensions mm: 84 x 64 x 28 Weight g: 900 |
| Electrical Specifications |
Voltage: 9 ~ 24 V DC / 24 V AC Power Consumption: 2.5W |
| Environmental Specifications |
Operating Temperature oC: -40 ~ +75 C (-40 ~ +167 F) Operating Humidity %: 0 ~ 95 |
| Additional info |
The TMC-GSFP electrical-to-optical Ethernet media converters accept a 10/100 or 1000 Mbps electrical input and converts to a 100 or 1000 Mbps optical output (selected by a dip switch) and the 100/1000 Mbps optical input back to the 10/100/1000 Mbps electrical output. “Auto-Negotiating” is supported on the copper interface side. These devices use either one or two optical fibers, depending upon the selection of sold-separately SFP† optical module. |
