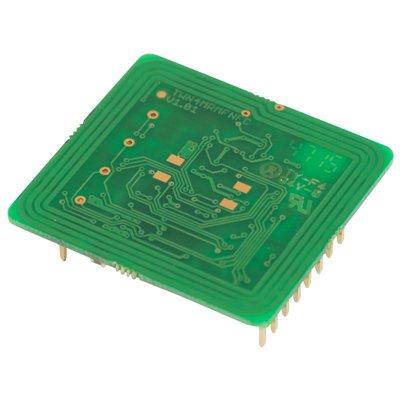

ELATEC T4MR-F TWN4 MultiTech HF/NFC Mini OEM RFID Card/Smartphone Reader Module

Technical Specification

Features:
  • Make: ELATEC
  • Model code: T4MR-F
  • Reader Type: Proximity
  • Standalone/ Networkable: Networkable
  • Read Range mm: Up to 70 mm
Read more
Additional info:

The TWN4 MultiTech HF Mini is built for small size, low power consumption, price and flexibility. Thanks to its compact dimensions, it can be integrated directly into the main circuit board. ELATEC’s multi-technology mini readers support high-frequency RFID and optionally NFC. They are designed for integration into machines, handheld computers or any other devices. Outstanding features are the 4 user-configurable ports (to be configured as input or output), beeper support and an integrated high-performance antenna. The simple ASCII or binary protocol enables quick software development cycles. All host communication takes place via SPI or asynchronous serial TTL interface. The module offers positions for placement for two LEDs that can be software controlled. For applications requiring additional security, there is an external Secure Access Module (SAM). This enables the application to perform secure transactions, e.g., payment terminals, etc.

Read more
Make ELATEC
Manufacturer ELATEC USA
Category Access Control>Access control readers
Model code T4MR-F
Reader Type Proximity
Standalone/ Networkable Networkable
Read Range mm Up to 70 mm
Wiegand Interface Yes
Clock-and-Data Interface Yes
Electrical Specifications Voltage: 3.15 V ~ 5.5 V DC
Power Consumption: RF field on: 110 mA typically
Physical Specifications Dimensions mm: 32.6 x 30.1 x 11.2
Weight g: 4
Environmental Specifications Operating Temp oC: -25 ~ +80 C (-13 ~ +176 F)
Operating Humidity %: 5 ~ 95
Additional info

The TWN4 MultiTech HF Mini is built for small size, low power consumption, price and flexibility. Thanks to its compact dimensions, it can be integrated directly into the main circuit board.

ELATEC’s multi-technology mini readers support high-frequency RFID and optionally NFC. They are designed for integration into machines, handheld computers or any other devices.

Outstanding features are the 4 user-configurable ports (to be configured as input or output), beeper support and an integrated high-performance antenna.

The simple ASCII or binary protocol enables quick software development cycles. All host communication takes place via SPI or asynchronous serial TTL interface. The module offers positions for placement for two LEDs that can be software controlled.

For applications requiring additional security, there is an external Secure Access Module (SAM). This enables the application to perform secure transactions, e.g., payment terminals, etc.

Download PDF version Download PDF version
