ELATEC T4SW-DQ10NDSW7-OSEU Multi-frequency Reader With Silver Frame/white Glass Front
Technical Specification
- Make: ELATEC
- Model code: T4SW-DQ10NDSW7-OSEU
- Series: Secustos SQ80 K series
- IP Rating: IP65
- Mount Type: Flush
Appealing flat design with premium look and feel, different colors for perfect architectural integration Easy installation with in-wall flush-mount boxes or on-wall mounting frame Supports LEGIC Connect thanks to integrated LEGIC frontend chip Water and dust protected, IP65 potted housing Interfaces: RS-485, OSDP protocol or Wiegand Additional function key, backlit keypad, dimmable LEDs Proximity sensor, ambient light sensor, tamper switch Versatile remote update and configuration features Mobile app for device parameter configuration via contactless NFC
Read more| Make | ELATEC |
|---|---|
| Manufacturer | ELATEC USA |
| Category | Access Control>Access control readers |
| Model code | T4SW-DQ10NDSW7-OSEU |
| Series | Secustos SQ80 K series |
| IP Rating | IP65 |
| Mount Type | Flush |
| Keypad Integrated | Yes |
| Read Range mm | LF and HF: up to 80 |
| LED / Beep | 2 LED areas: upper left RGB, upper right white; LEDs dimmable |
| Color | Silver / Gray |
| Wiegand Interface | Yes |
| Electrical Specifications |
Voltage: 6 ~ 28 V Power Consumption: Max. 300 mA |
| Physical Specifications |
Dimensions mm: 86.00 x 86.00 x 15.90 Weight g: 113 g |
| Environmental Specifications |
Operating Temp oC: -20 ~ +60 C (-4 ~ +140 F) Operating Humidity %: 5 ~ 95 |
Product description

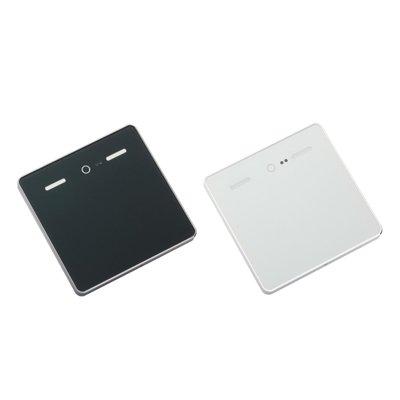

Secustos SQ80 K LEGIC Multi-Frequency Access Control Reader
Introducing the Secustos SQ80 K LEGIC, a state-of-the-art, multi-technology access control reader from ELATEC, designed to meet the diverse needs of physical security applications. This sleek and ultra-flat reader is crafted from premium materials, ensuring not only a sophisticated aesthetic but also a robust performance.
Key Features
- Multi-frequency capability supporting HF, LF, and BLE for versatile use.
- Modern interfaces including RS-485 and OSDP for seamless integration, and Wiegand support for legacy systems.
- IP65 rated housing providing water and dust resistance, ensuring longevity indoors and outdoors.
- Optional colours in silver or grey to blend with any architectural design.
- LEGIC Connect support via integrated LEGIC frontend chip for advanced security operations.
- Advanced security features, including a tamper switch and proximity sensor.
- Dimmable LEDs and a backlit keypad for user-friendly operation in various lighting conditions.
- Mobile configuration with NFC contactless technology for ease of management.
Ideal Use Cases
The Secustos SQ80 K LEGIC reader is perfect for environments requiring high-security access control such as corporate buildings, data centers, and secured facilities. Its advanced connectivity options and robust design make it an ideal choice for both new installations and upgrades of existing systems.
