Dahua 2-Wire IP Smart Control Panel
Technical Specification
- Make: Dahua Technology
- Model code: DHI-SCP3022A-B
- Series: Dahua Android Series
- Type of Kit/ System: Video & Audio
- Mount Type: Flush Mount
Android 14 System Full-Screen Design with an Ultra-Narrow Black Border 7-inch IPS Capacitive Touchscreen Supports IP, Wi-Fi and IP Two-Wire Communication Mode Wakes Up Automatically When a Person Approaches Equipped with a Built-In Light Sensor for Automatically Adjusting the Screen Brightness Built-In Temperature and Humidity Detectors
Read more| Make | Dahua Technology |
|---|---|
| Manufacturer | Dahua Technology USA Inc. |
| Category | Access Control>Intercom Systems |
| Model code | DHI-SCP3022A-B |
| Series | Dahua Android Series |
| Type of Kit/ System | Video & Audio |
| Mount Type | Flush Mount |
| Panel Material | PC + ABS |
| Door/ Phone Ratio | Gray |
| Environmental Specifications |
Operating Temperature oC: -10 ~ +55 C (14 ~ 131 F) Operating Humidity %: 10 ~ 95 |
| Electrical Specifications |
Voltage: 48 V DC Power Consumption: ≤ 10 W (standby), ≤ 14 W (working) |
| Physical Specifications |
Dimensions mm: 176.2 x 103.1 x 32.2 Weight g: 1,220 g |
Product description
Dahua DHI-SCP3022A-B 2-Wire IP Smart Control Panel
The Dahua DHI-SCP3022A-B combines video intercom, video monitoring and wireless alarm functions in an indoor smart control panel. Running Android 14 with 4 GB RAM and 16 GB storage, it supports APK installation to extend functionality with third-party applications. IP, Wi-Fi and digital 2-wire communication options support integration into a range of building setups.

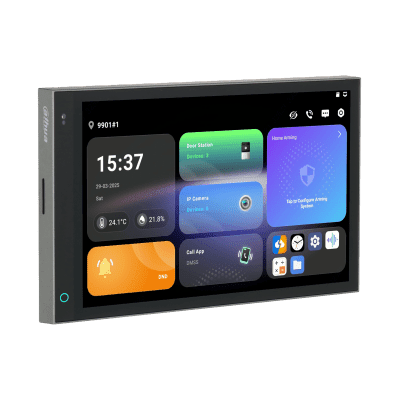

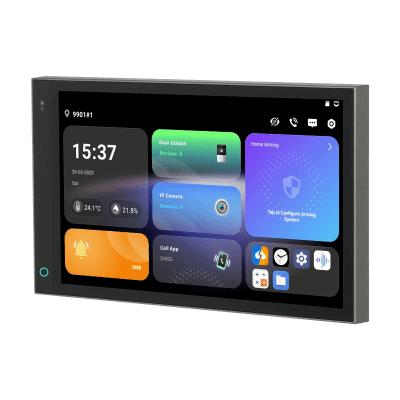

A 7-inch capacitive IPS touchscreen provides 1024 × 600 resolution, multi-touch operation and viewing angles up to 80 degrees horizontally and vertically. The full-screen design has a narrow black border. Proximity wake-up and automatic brightness adjustment help make everyday operation more convenient, while built-in temperature and humidity detectors display environmental readings on the home screen. Multi-color indicators with a breathing-light function show status changes.
Access and system features
- Supports two-way audio, information from the management center and elevator calls to a resident’s floor.
- Includes eight alarm inputs, one alarm output, an RS-485 port, USB and a 10/100 Mbps Ethernet port.
- Supports microSD card storage up to 512 GB and video messages when a card is installed in the monitor or door station.
Ideal use cases
Designed for indoor use in villas, residential communities, apartments, hotels and offices, the panel supports convenient communication and building control from a single interface.
