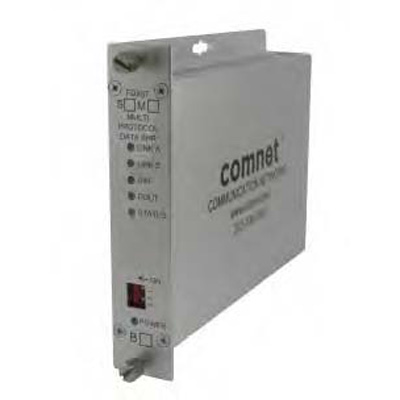

ComNet FDX57M1 Multi-protocol RS232/422/485 Data Transceiver

Technical Specification

Features:

Make: ComNet
Model code: FDX57M1
Data Transceiver: Yes
No of Fibres: 1 in, 1 out
Dimensions mm: 155 x 135 x 28

Additional info:

The ComNet™ FDX57 series self-healing ring transceiver unit is a fully-digital modem designed for implementing RS232, RS422 or RS485 2 or 4-wire data communications networks of the highest possible reliability. A network of FDX57 units can support one full-duplex or two half-duplex data channels. These transceivers also feature data translation to convert between data protocols. Data re-clocking and regeneration permit an almost unlimited number of transceiver/controller units to be used within the network.

Contact manufacturer Contact manufacturer

Datasheet Datasheet

Make	ComNet
Manufacturer	ComNet Europe Ltd.
Category	Video Surveillance>Fibre optics, telemetry receivers, transmitters, transceivers
Model code	FDX57M1
Data Transceiver	Yes
No of Fibres	1 in, 1 out
Physical Specifications	Dimensions mm: 155 x 135 x 28 Weight g: 900
Environmental Specifications	Operating Temperature ^oC: -40 ~ +75 C (-40 ~ +167 F) Operating Humidity %: 0 ~ 95
Electrical Specifications	Voltage: 8 ~ 15 V DC Power Consumption: 4 W
Additional info	The ComNet™ FDX57 series self-healing ring transceiver unit is a fully-digital modem designed for implementing RS232, RS422 or RS485 2 or 4-wire data communications networks of the highest possible reliability. A network of FDX57 units can support one full-duplex or two half-duplex data channels. These transceivers also feature data translation to convert between data protocols. Data re-clocking and regeneration permit an almost unlimited number of transceiver/controller units to be used within the network.
