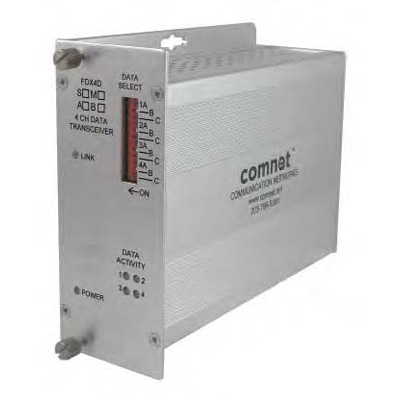

ComNet FDX4D(M)(S)1 4 Bi-directional Data Channels
Technical Specification
- Make: ComNet
- Model code: FDX4D(M)(S)1
- Data Transceiver: Yes
- Dimensions mm: 155 x 135 x 56
- Weight g: 900
The ComNet™ FDX4D(M)(S)1 Series data transceiver series provide transmission of four bi-directional data channels over one optical fiber and are ideal for use in unconditioned roadside or out-of-plant installations. The data channels can be set independently for RS232, RS422 and 2 or 4-wire RS485 with tri-state support. Plug-and-play design ensures ease of installation and no electrical or optical adjustments are ever required. Bi-color (Red/Green) LED indicators are provided for rapidly ascertaining equipment operating status.
Read more| Make | ComNet |
|---|---|
| Manufacturer | ComNet Europe Ltd. |
| Category | Video Surveillance>Fibre optics, telemetry receivers, transmitters, transceivers |
| Model code | FDX4D(M)(S)1 |
| Data Transceiver | Yes |
| Physical Specifications |
Dimensions mm: 155 x 135 x 56 Weight g: 900 |
| Environmental Specifications |
Operating Temperature oC: -40 ~ +75 C (-40 ~ +167 F) Operating Humidity %: 0 ~ 95 |
| Electrical Specifications |
Voltage: 8 ~ 15 V DC Power Consumption: 4 W |
| Additional info | The ComNet™ FDX4D(M)(S)1 Series data transceiver series provide transmission of four bi-directional data channels over one optical fiber and are ideal for use in unconditioned roadside or out-of-plant installations. The data channels can be set independently for RS232, RS422 and 2 or 4-wire RS485 with tri-state support. Plug-and-play design ensures ease of installation and no electrical or optical adjustments are ever required. Bi-color (Red/Green) LED indicators are provided for rapidly ascertaining equipment operating status. |
