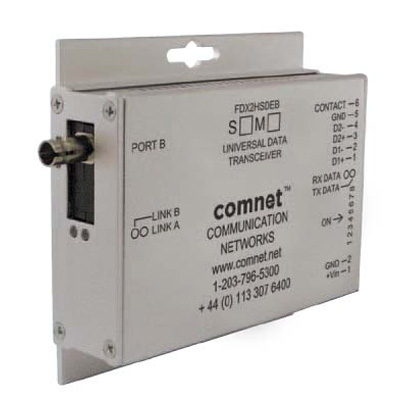

ComNet FDX2HSDM1EA/M Dual High Speed RS485 Data Transceiver

Technical Specification

Features:
  • Make: ComNet
  • Model code: FDX2HSDM1EA/M
  • Data Transceiver: Yes
  • No of Fibres: 1 in, 1 out
  • Dimensions mm: 104 x 94 x 28
Additional info:

FDX2HSDM1EA/M is a dual high speed RS485 data transceiver that meets RS485 (2W) specifications. The ComNet™ FDX2HSD(M,S)(1,2)(EA,EB)/M data transceivers is tested and certified by an independent laboratory for full compliance with the environmental requirements. The robust design of FDX2HSDM1EA/M assures extremely high reliability in unconditioned out-of-plant/roadside environments. The ComNet™ FDX2HSD(M,S)(1,2)(EA,EB)/M data transceivers are NTCIP compatible and the built-in fiber link tester allows for the testing of the fiber. The remote fault indication of FDX2HSDM1EA/M allows the user to determine when a fiber break or loss of prime operating power has occurred, or a transceiver in the field has failed.

Read more
Make ComNet
Manufacturer ComNet Europe Ltd.
Model code FDX2HSDM1EA/M
Data Transceiver Yes
No of Fibres 1 in, 1 out
Physical Specifications Dimensions mm: 104 x 94 x 28
Weight g: 900
Environmental Specifications Operating Temperature oC: -40 ~ +75 C (-40 ~ +167 F)
Operating Humidity %: 0 ~ 95
Electrical Specifications Voltage: 8 ~ 36 V DC
Power Consumption: 4 W
Additional info

FDX2HSDM1EA/M is a dual high speed RS485 data transceiver that meets RS485 (2W) specifications. The ComNet™ FDX2HSD(M,S)(1,2)(EA,EB)/M data transceivers is tested and certified by an independent laboratory for full compliance with the environmental requirements. The robust design of FDX2HSDM1EA/M assures extremely high reliability in unconditioned out-of-plant/roadside environments. The ComNet™ FDX2HSD(M,S)(1,2)(EA,EB)/M data transceivers are NTCIP compatible and the built-in fiber link tester allows for the testing of the fiber. The remote fault indication of FDX2HSDM1EA/M allows the user to determine when a fiber break or loss of prime operating power has occurred, or a transceiver in the field has failed.
