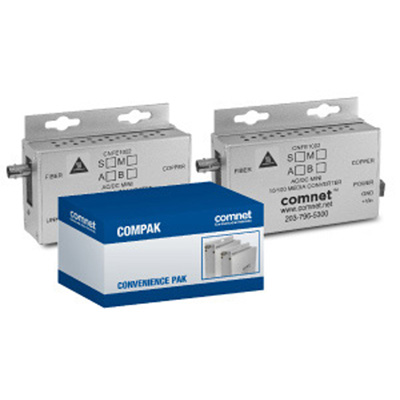

Comnet COMPAK1002MAC1M 10/100 Mbps Ethernet 2 Port Media Converter

Technical Specification

Features:

Make: ComNet
Model code: COMPAK1002MAC1M
Transmitter Type: Yes
No of Fibres: 1
Dimensions mm: 8.4 × 6.4 × 2.8

Additional info:

The ComNet™ COMPAK1002MAC1M Ethernet 2 port media converters are designed to transmit and receive 10/100 Mbps data over multimode optical fiber. The electrical interface will Auto-Negotiate to a 10 Mbps, or 100 Mbps Ethernet rate without any adjustments.

Contact manufacturer Contact manufacturer Datasheet Datasheet

Make	ComNet
Manufacturer	ComNet Europe Ltd.
Category	Video Surveillance>Fibre optics, telemetry receivers, transmitters, transceivers
Model code	COMPAK1002MAC1M
Transmitter Type	Yes
No of Fibres	1
Physical Specifications	Dimensions mm: 8.4 × 6.4 × 2.8 Weight g: 900
Environmental Specifications	Operating Temperature ^oC: -40 ~ +75 Operating Humidity %: 0 ~ 95
Electrical Specifications	Voltage: 22 ~ 27 VAC
Additional info	The ComNet™ COMPAK1002MAC1M Ethernet 2 port media converters are designed to transmit and receive 10/100 Mbps data over multimode optical fiber. The electrical interface will Auto-Negotiate to a 10 Mbps, or 100 Mbps Ethernet rate without any adjustments.
