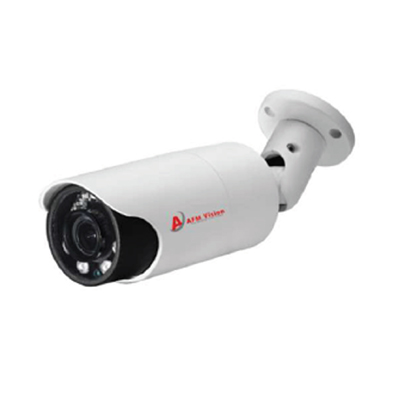

AFMVision AFM-WDM-3MP-B 3 Megapixel IR Bullet Motorized Lens IP Camera

Technical Specification

Features:
  • Make: AFMVision
  • Model code: AFM-WDM-3MP-B
  • Series: IQeye Alliance-mx
  • Chip Inch Size: 1/3
  • Color Type: True Day / Night
Read more
Additional info:

1/2.5" 3.0 Megapixel Progressive Scan Aptina CMOS sensor Ti DaVinci Series DSP H.264&MJPEG video compression and JPEG image capture Max 20fps @ 3.0MP (20480×1536) Dual encoding streams supported Lens:2.8-12mm /F1.4 varifocal motorized lens 4pcs Φ11 IR lights ,Max IR Distance :30m Support Alarm I/O Built-in Web server, NVR, CMS

Read more
Make AFMVision
Manufacturer AFMVision UK Technologies Ltd.
Model code AFM-WDM-3MP-B
Series IQeye Alliance-mx
Chip Inch Size 1/3
Color Type True Day / Night
Resolution 3 MP
Digital (DSP) Yes
Specialist Type Network
Sensitivity Lux 0.2
Auto Iris Yes
Direct Drive Yes
Electrical Specifications Voltage: 12 V DC, PoE
Power Consumption: < 10 W
Focal Length mm 2.8 ~ 12
Wide Dynamic Range Yes
Picture Elements HxV 2048 x 1536
Network Properties Image Frame Rate: 20 fps
Network Protocols: HTTP, FTP, SMTP, DNS, DDNS, RTSP, RTP, TCP, UDP, DHCP
White Balance Yes
S/ N (Signal/ Noise) Ratio dB > 50
Y/ C (Video Output) BNCx1, 1Vp-p 75 ohm Composite - Optional
Compression Type H.264, MJPEG
Physical Specifications Weight g: 866
Dimensions mm: 249 x 74
Environmental Specifications Protection: IP66
Operating Temperature oC: -40 ~ +60 C (-40 ~ +140 F)
Operating Humidity %: < 95
Additional info
  • 1/2.5" 3.0 Megapixel Progressive Scan Aptina CMOS sensor
  • Ti DaVinci Series DSP
  • H.264&MJPEG video compression and JPEG image capture
  • Max 20fps @ 3.0MP (20480×1536)
  • Dual encoding streams supported
  • Lens:2.8-12mm /F1.4 varifocal motorized lens
  • 4pcs Φ11 IR lights ,Max IR Distance :30m
  • Support Alarm I/O
  • Built-in Web server, NVR, CMS
