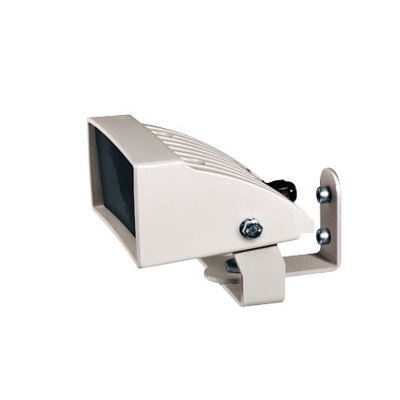

Videotec UPTIRN10WA00 LED Illuminators With EAC Certification

Technical Specification

Features:

Make: Videotec
Model code: UPTIRN10WA00
LED Type: White
Lamp Type: Wide
Filter nM: 850 ~ 940

Additional info:

Vandal-proof protection (IK10) Power supply 24Vac/12-24Vdc Beam pattern: 10°, 30°, 60° Wavelengths: 850nm, 40nm, white light Adjustable light intensity Adjustable built-in photocell IP66/IP67 EAC certification UL listed

Contact manufacturer Contact manufacturer Datasheet Datasheet

Make	Videotec
Manufacturer	Videotec
Category	Video Surveillance>Security camera lighting
Model code	UPTIRN10WA00
LED Type	White
Lamp Type	Wide
Filter nM	850 ~ 940
Photocell	Yes
Physical Specifications	Dimensions mm: 187 x 111 x 176 Weight kg: 1.5
Electrical Specifications	Voltage: 24 V AC /12 ~ 24 V DC
Environmental Specifications	Operating Temperature ^oC: -40 ~ +60 C (-40 ~ +140 F) Protection: IP66, IP67, IK10
Additional info	Vandal-proof protection (IK10) Power supply 24Vac/12-24Vdc Beam pattern: 10°, 30°, 60° Wavelengths: 850nm, 40nm, white light Adjustable light intensity Adjustable built-in photocell IP66/IP67 EAC certification UL listed
