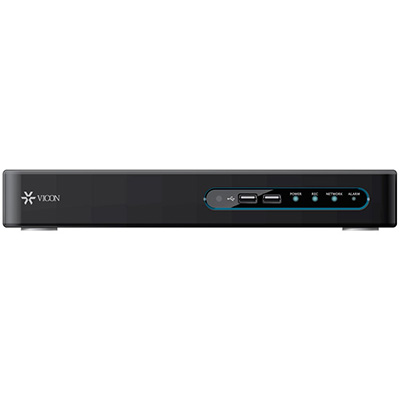

Vicon EXPRESS-16 16-Channel Embedded DVR

Technical Specification

Please note: this is a discontinued product.

Go to Replacement product

Vicon EXPRESS-16 16-Channel Embedded DVR

Features:

Make: Vicon
Model code: EXPRESS-16
Channels: 16
Recording Mode: Real Time / Timelapse / Event
Monitor Outputs: 2

Additional info:

Vicon EXPRESS-16 is a plug-and-play Digital Video Recorder designed specifically for High Definition (960H) analog cameras. It is the ideal solution for CCTV users who require an easy-to-use standalone 16-channel digital video recorder with the benefit of additional remote PC access via a network/Internet. Live monitoring and remote playback are available by web browser.

Contact manufacturer Contact manufacturer Datasheet Datasheet

Make	Vicon
Manufacturer	Vicon Industries
Category	Video Surveillance>Digital video recorders (DVRs)
Model code	EXPRESS-16
Channels	16
Recording Mode	Real Time / Timelapse / Event
Monitor Outputs	2
Inbuilt Multiplexer	Yes
Alarm I/O	4 in, 1 out
Image per second (IPS)	480
Compression Type	H.264
External Storage	USB
Audio Recording and Properties	G.711
Type of Multiplexer Functions	Recording, Playback
IP Storage rate (fps)	480
Physical Specifications	Dimensions mm: 305 x 44 x 298 Weight kg: 7
Electrical Specifications	Voltage: 12 V DC, 100 ~ 240 V AC
Environmental Specifications	Operating Temp ^oC: 0 ~ 40 C (32 ~ 104 F) Operating Humidity %: 10 ~ 90
Additional info	Vicon EXPRESS-16 is a plug-and-play Digital Video Recorder designed specifically for High Definition (960H) analog cameras. It is the ideal solution for CCTV users who require an easy-to-use standalone 16-channel digital video recorder with the benefit of additional remote PC access via a network/Internet. Live monitoring and remote playback are available by web browser.
