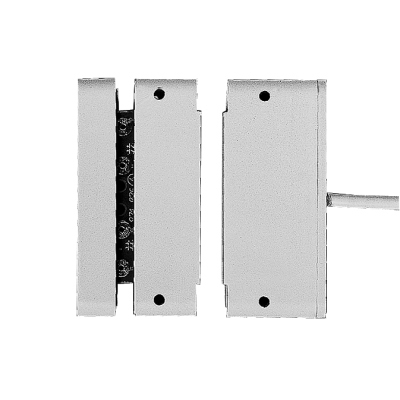

Vanderbilt EKOM11-W Electronic Cross Contact With 4m Cable

Technical Specification

Please note: this is a discontinued product.

Go to Replacement product

Vanderbilt EKOM11-W Electronic Cross Contact With 4m Cable

Features:

Make: Vanderbilt
Model code: EKOM11-W
Series: Surveillance Contacts
Door Contacts: Yes
Voltage: 9 ~ 15 V DC

Additional info:

The Vanderbilt EKOM11-W electronic cross contact with 4m cable allows the contactless activation of glass break sensors, magnetic contacts and alarm wire loops on a alarm system. The two-part device consists of a transmitter and a receiver unit. The transmitter is connected by a 6-pole cable to the control panel and is for example installed at a window frame. Opposite on the moving part of the window, the receiver is mounted.

Contact manufacturer Contact manufacturer

Make	Vanderbilt
Manufacturer	Vanderbilt Industries
Category	Access Control>Access control accessories
Model code	EKOM11-W
Door Contacts	Yes
Electrical Specifications	Voltage: 9 ~ 15 V DC
Physical Specifications	Dimensions mm: 68 x 29 x 10
Additional info	The Vanderbilt EKOM11-W electronic cross contact with 4m cable allows the contactless activation of glass break sensors, magnetic contacts and alarm wire loops on a alarm system. The two-part device consists of a transmitter and a receiver unit. The transmitter is connected by a 6-pole cable to the control panel and is for example installed at a window frame. Opposite on the moving part of the window, the receiver is mounted.
