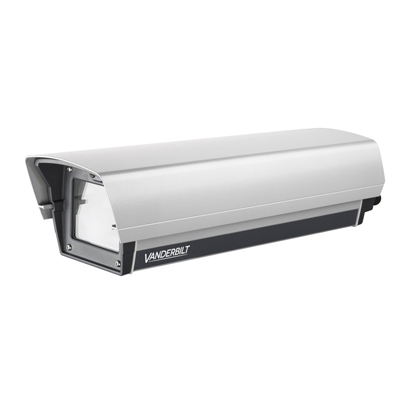

Vanderbilt CHSL4011 CCTV Camera Housing With Integrated Heater
Technical Specification
- Make: Vanderbilt
- Model code: CHSL4011
- Housing Type: Camera Housings
- Indoor/Outdoor: External
- Mount Type: Wall
Ideal for most applications‚ especially for larger length cameras and lenses. Suitable for outdoor use. Extruded aluminium section construction. Sunshield is adjustable along the length of the housing body. Hinge retained body allows easy access for maintenance. Adjustable mounting plate to suit most camera/lens assemblies. Demister & sunshield fitted as standard‚ optional wiper and washer available.
Read more| Make | Vanderbilt |
|---|---|
| Manufacturer | Vanderbilt Industries |
| Category | Video Surveillance>Security camera housing |
| Model code | CHSL4011 |
| Housing Type | Camera Housings |
| Indoor/Outdoor | External |
| Mount Type | Wall |
| Environmental Specifications |
Operating Temperature oC: -20 ~ +60 Operating Humidity %: 0 ~ 95 Protection: IP66 |
| with Heater | Yes |
| with Wiper | Yes |
| Sunshield | Yes |
| Housing Material | Aluminum |
| Physical Specifications |
Dimensions mm: 125 x 100 x 400 mm Weight g: 4,900 |
| Electrical Specifications |
Power Consumption: 50 W Voltage: 12 ~ 24 V AC |
| Additional info |
Ideal for most applications‚ especially for larger length cameras and lenses. Suitable for outdoor use. Extruded aluminium section construction. Sunshield is adjustable along the length of the housing body. Hinge retained body allows easy access for maintenance. Adjustable mounting plate to suit most camera/lens assemblies. Demister & sunshield fitted as standard‚ optional wiper and washer available. |
