Nedap AEOS Security service

Multiple time zones for central administration with a single server concept for multiple units that are located in different time zones.

Deny particular groups of carriers access to certain zones in special situations, for example during crises or when dealing with various threat levels. System administrators can (de)activate Verification, APB and Counting for each of these special carrier groups. The number of security levels that can be set with this license is unlimited.

Nedap's Intercom Message Mapper is especially designed for communication with a Commend intercom system.

This license has been developed to allow dynamic administration of locker systems in AEOS. Contrary to the Cabinet Access Point license which treats access to lockers in the same way as for access points, the LoXS Integration license allows system users to dynamically assign lockers to carriers and demand their return after a set period of time. This set period of time varies from one-off use (toggle), to a short-term period (e.g. one day) to a semi-permanent period (long-term, for e.g. “personal” lockers in schools).

The Identity & Authorization Application means lower costs and higher security. Because it has an attractive, intuitively usable interface, there is virtually no need for training. The ability to multitask leads to higher productivity and improved customer service. Thanks to widgets, every functionality can be accessed quickly and efficiently. And if a task needs high attention, all other functions are moved to the background.

Airlock is not an Access Point itself but synchronizes multiple Access Points in such a way that only one can provide access at a time. Furthermore, it is capable of controlling the occupation of the lock. When connected to Airlock an Access Point will always ask the Airlock for exclusive rights to provide access. Since Airlock will only grant the exclusive rights to one Access Point at a time and the Access Point will release the exclusive rights after closing the door, only one door can be open at a time. This synchronization function applies to Badge handling, Manual unlock input, Provide access (server). The synchronization function does NOT apply to Emergency unlock input, Automatic unlock schedule, Access control de-activated and unlocked (server).

Nedap AX2002 is a AEbus extension set which increases AEbus distance to 300 meters.

Nedap AEOS Configuration & Maintenance is designed for administrators of AEOS.

The rule engine is a license for automatically assigning and/or changing information and authorizations by means of user-defined rules. It can quickly and simply couple access authorisations for employees, vehicles, visitors or contractors to different attributes such as age, department or building. Authorizations can be applied to individuals or complete groups, locally or across the world. A rule may also be a combination of several conditions which are linked by "and/or". The following parameters can be assigned or altered by rules: template, entrance group, day/time schedule, organization, region and area. This functionality ensures that standard manual changes in the system are automated and executed error-free.

The violations & blacklist management option allows setting an unlimited number of violation categories and the corresponding sanctions. Sanctions may include barring someone from entering company premises, for instance. Violations & blacklist management gives an overview of the time, date and place of each violation recorded for a particular visitor, employee, contractor or vehicle. The system user can determine when someone is blacklisted for these violations. It is not possible to issue a new badge to someone on the blacklist. This can only be done after the sanction period is over, or after the carrier has been manually removed from the blacklist.

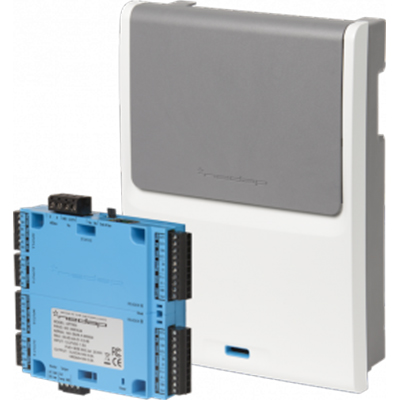

Nedap AP7803m is a versatile and future-proof blue door controller. It can even control security holding areas, revolving gates and lifts without any additional equipment. The AP7803m not only makes decisions internally, but can aslo be powered via Ethernet (PoE).

Extended Entrance Package is a license package for an extended door/turnstile, including: Turnstile control for direction control IN, OUT including: Standard access point , Badge reader, 2nd badge reader, Door monitor, Emergency unlock, Manual override and Booking contacts. Anti-Passback function for providing one-card, one-way access into and then out of a secure area. It prevents someone from using a card to enter a secure area and then passing that card back to someone else to enter that same area.

Nedap Camera Storage software companion enables multiple camera services to be connected to the same Camera Storage. It defines the location where the data is to be stored and also the period of time during which the data is stored, afer which the data is deleted.

Nedap AEbox-4 is the housing pack for the various AEpack modules used for AEOS security management. The status LEDs are displayed in the AEbox screen, providing a clear and comprehensive indication of each module's status.

Anti Passback (APB) function per Access Point. To provide one-card, one-way access into and then out of a secure area. It prevents someone from using a card to enter a secure area and then passing that card back to someone else to enter that same area. A distinction can be made between Soft APB (only registration of APB errors), Hard APB (function described above) and Timed APB (APB status will be reset automatically after the stated time).

Nedap AX2004 is a housing pack for various AEpack modules used for AEOS security management. The status LEDs are displayed in the AEbox screen, providing a clear and comprehensive indication of each module's status.

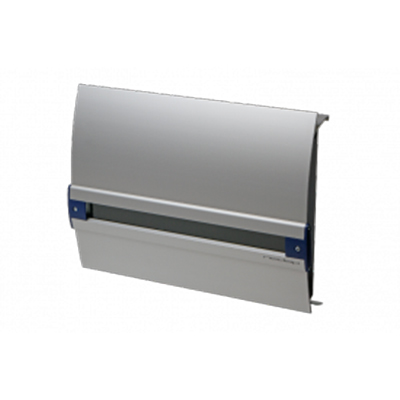

Nedap AEbox-3 is the housing pack for the various AEpack modules used for AEOS security management. The status LEDs are displayed in the AEbox screen, providing a clear and comprehensive indication of each module's status.

The AP7003m is an attractive peripheral for the AP7803. This competitively priced door interface benefits from the intelligence of the AP7803 by using the 485-bus. This offers maximum design freedom and makes it possible to reuse existing cabling.

Nedap AP7803 is a versatile and future-proof blue door controller. It can even control security holding areas, revolving gates and lifts without any additional equipment. The AP7803 not only makes decisions internally, but can aslo be powered via Ethernet (PoE).

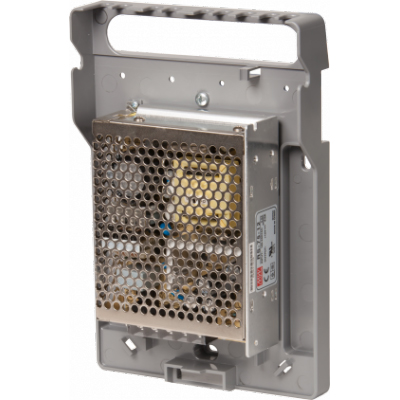

Nedap AP7021 is a power supply that is suitable for multiple AEOS blue modules. It is designed to combine with other AEOS blue modules and the DIN rail mounting ensures ease of installation.
